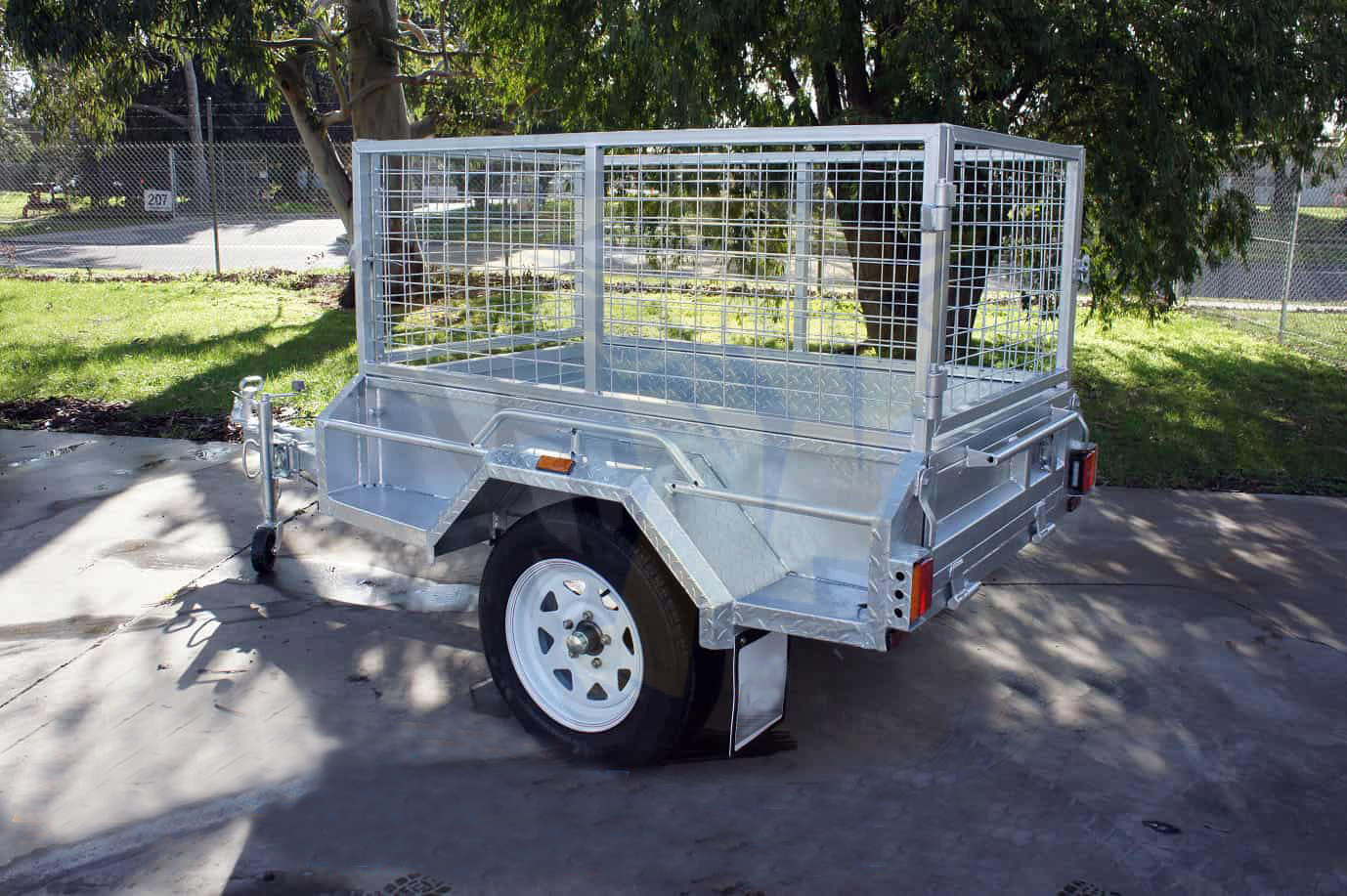

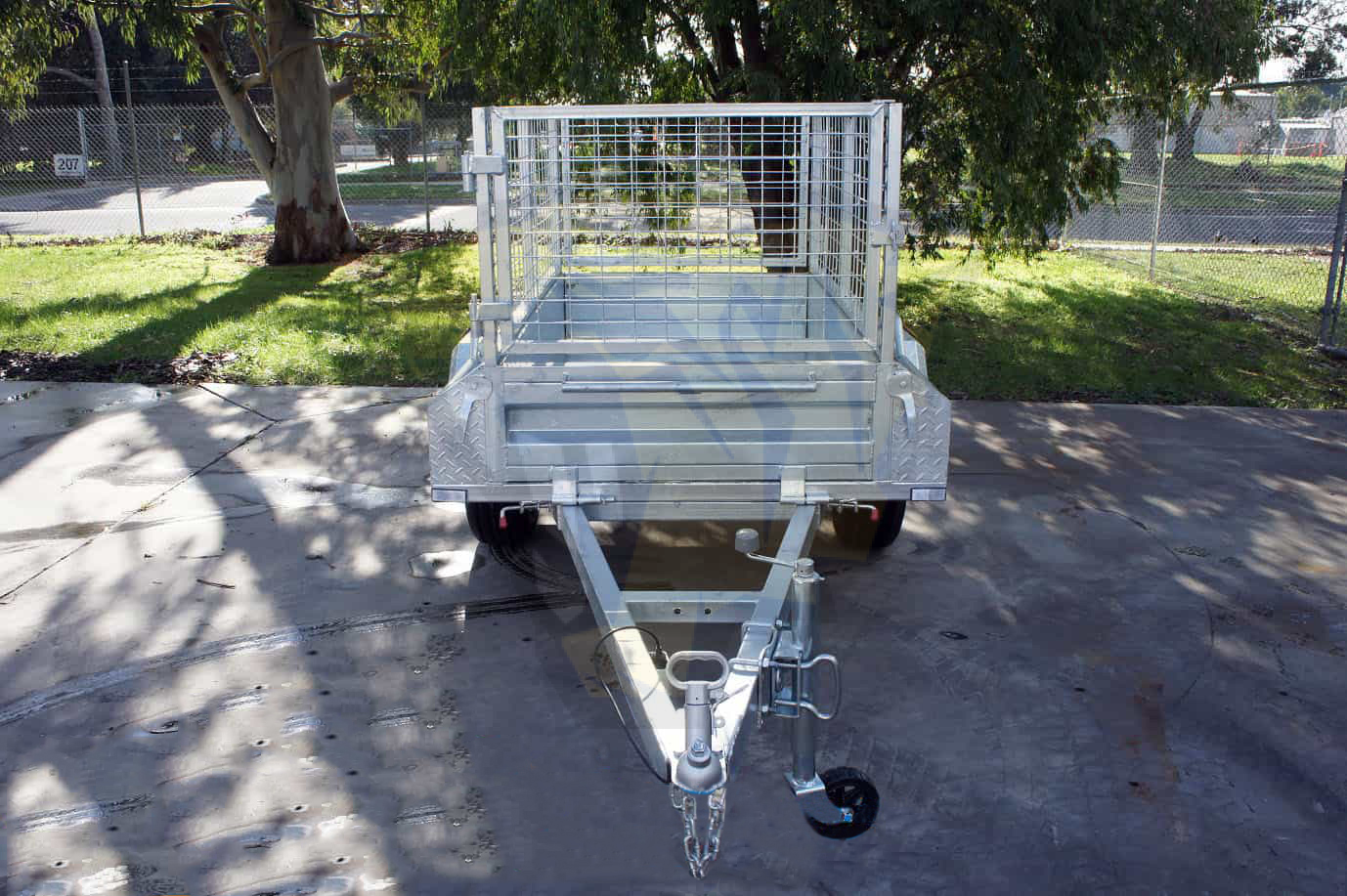

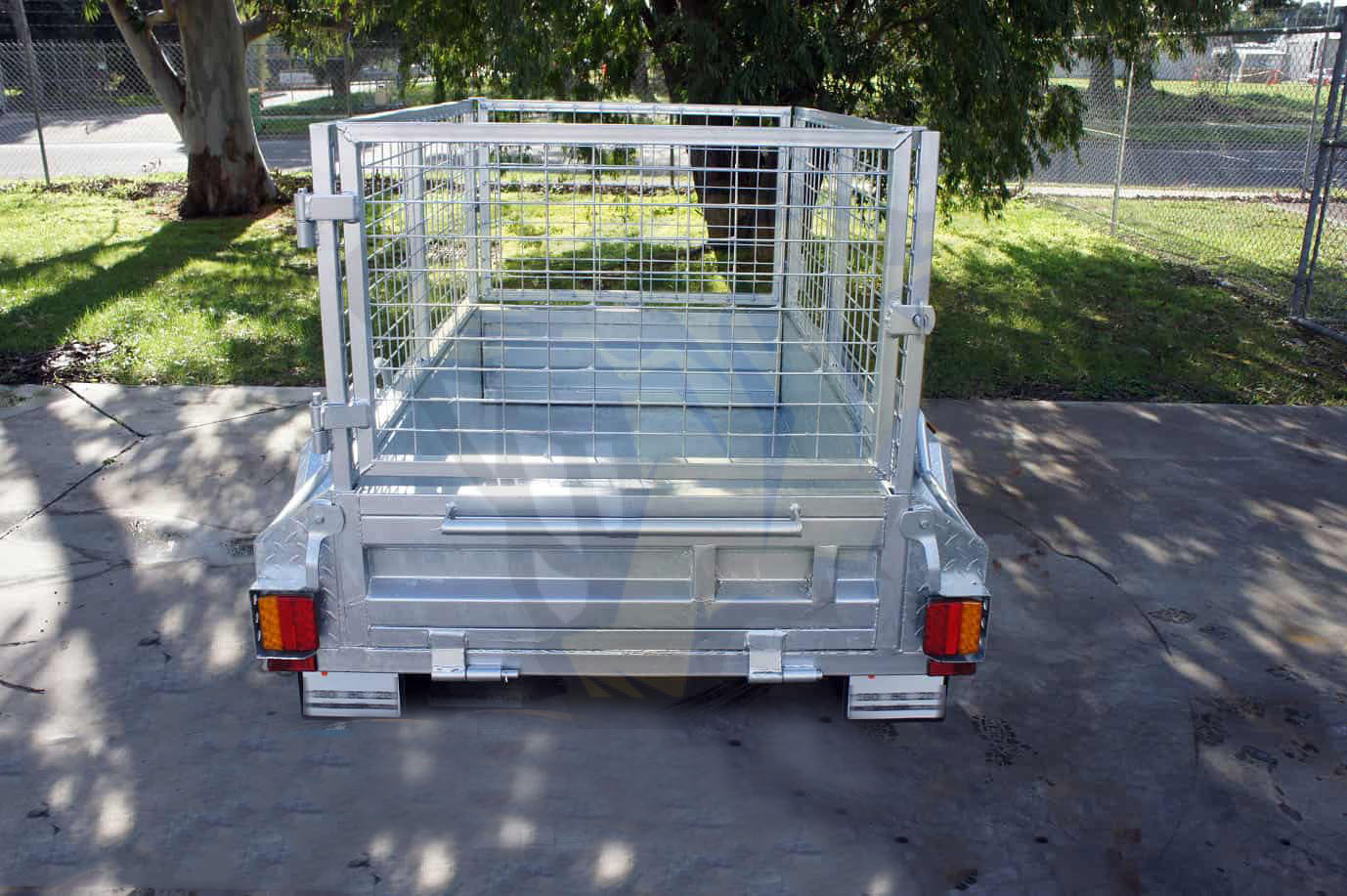

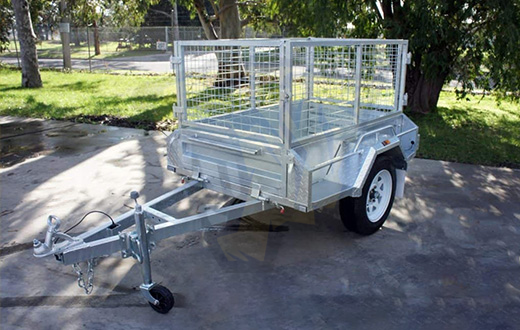

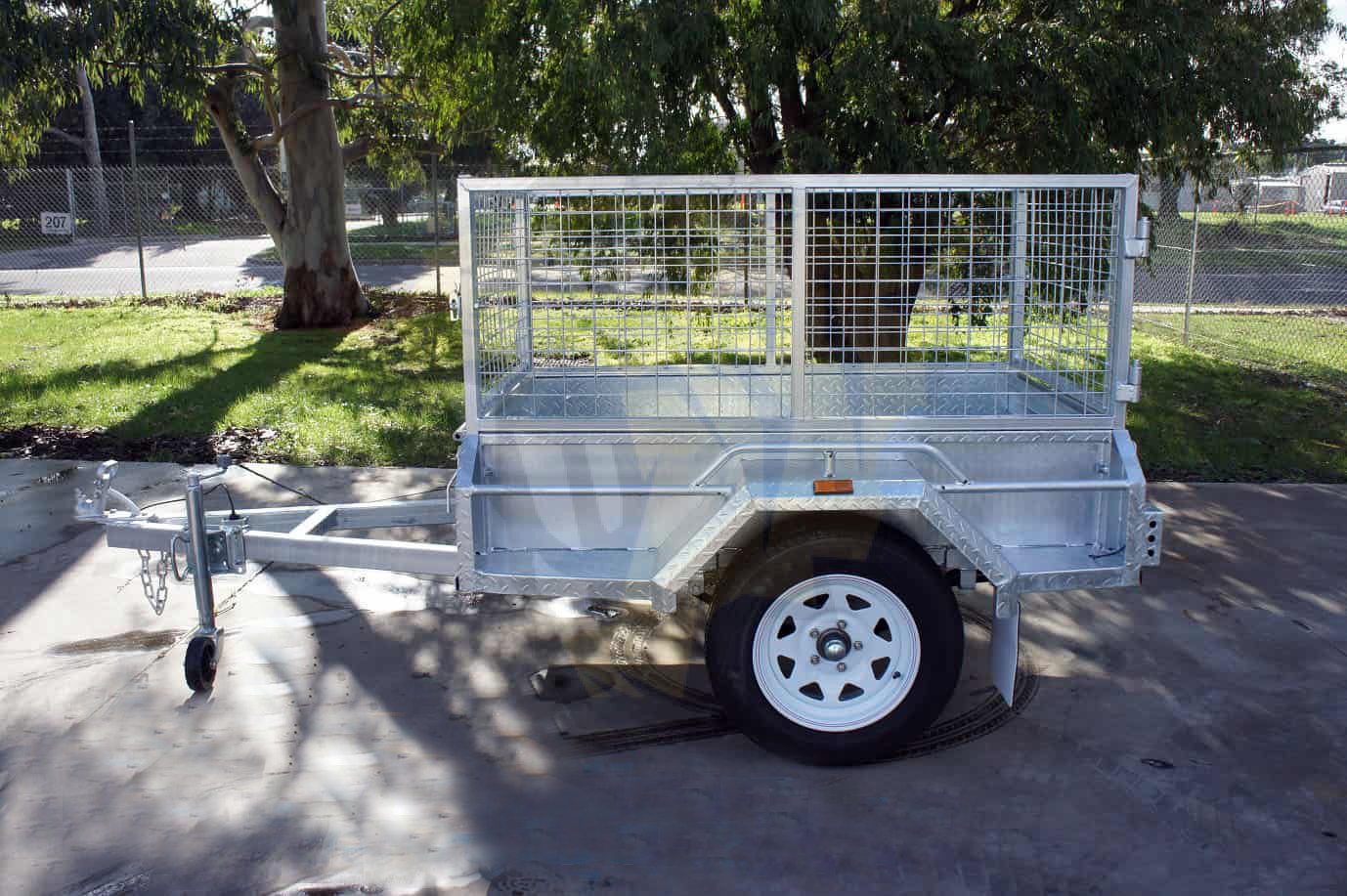

5×3 Fully Welded Tipper ATM 650KG (Model No: SP53FWT)
Features
Free Jockey Wheel
New Plug in Design Cage (Steady and Easy to Remove)
4 Tie Down Rails are Welded All the Way Round
Front and Rear Tailgates That Can Be Easily Removed
Extended Foot Step for Jerry Can Hold and Toolbox.
Tipping Function
Fully Welded Body
Double Latches
Specifications
| ATM | 650kg |
| Internal Size | 1520x910mm |
| External Size | 2850x1420mm |
| Drawbar | 1200mm Long 70x50x3.0mm Tube |
| Chassis Frame | 40x40x3.0mm Tube |
| Finish | Hot Dipped Galvanized (Rust free) |
| Side | 300mm High (One Piece of Checker Plate Fold Up) |
| Floor | 2.5mm Thick, 2 Piece of Fully Welded Checker Plate |
| Cage | 600mm High (Plug In Design) |
| Jockey Wheel | 6" Swing up |
| Tyre | Brand New 14" Wheel |
| Wheel | Sunraysia Style with 5 Studs Ford Hub Pattern |
| Axle | Solid Round (Upgrade Option Available) |
| Coupling | 50mm Australia Standard |
| Trailer plug | Round or Flat 7 Pin Plug |
| Spring | 6 Leafs Heavy Duty Spring |
| Safety Chain | 10mm |
| Light | LED Set |
