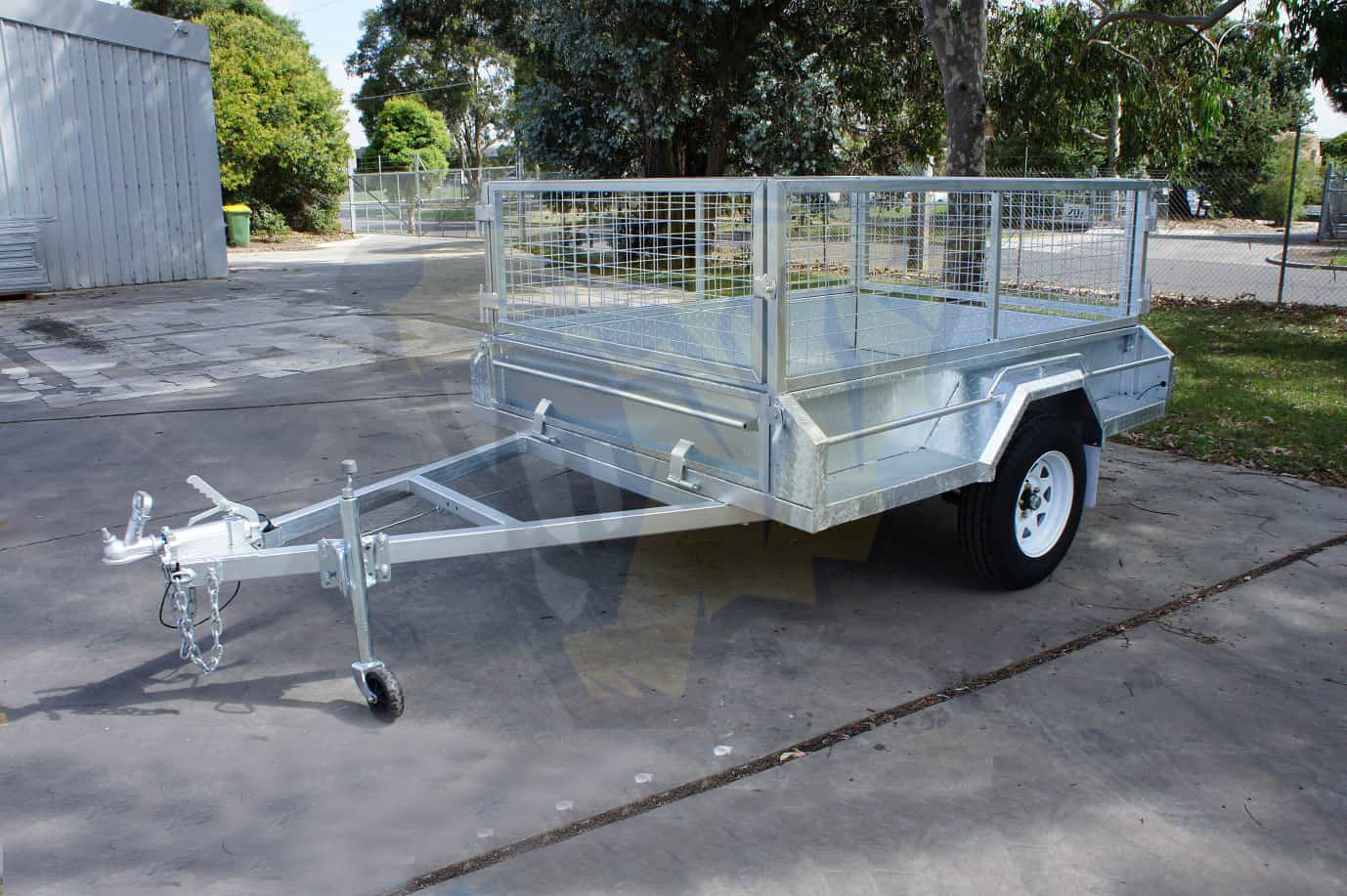

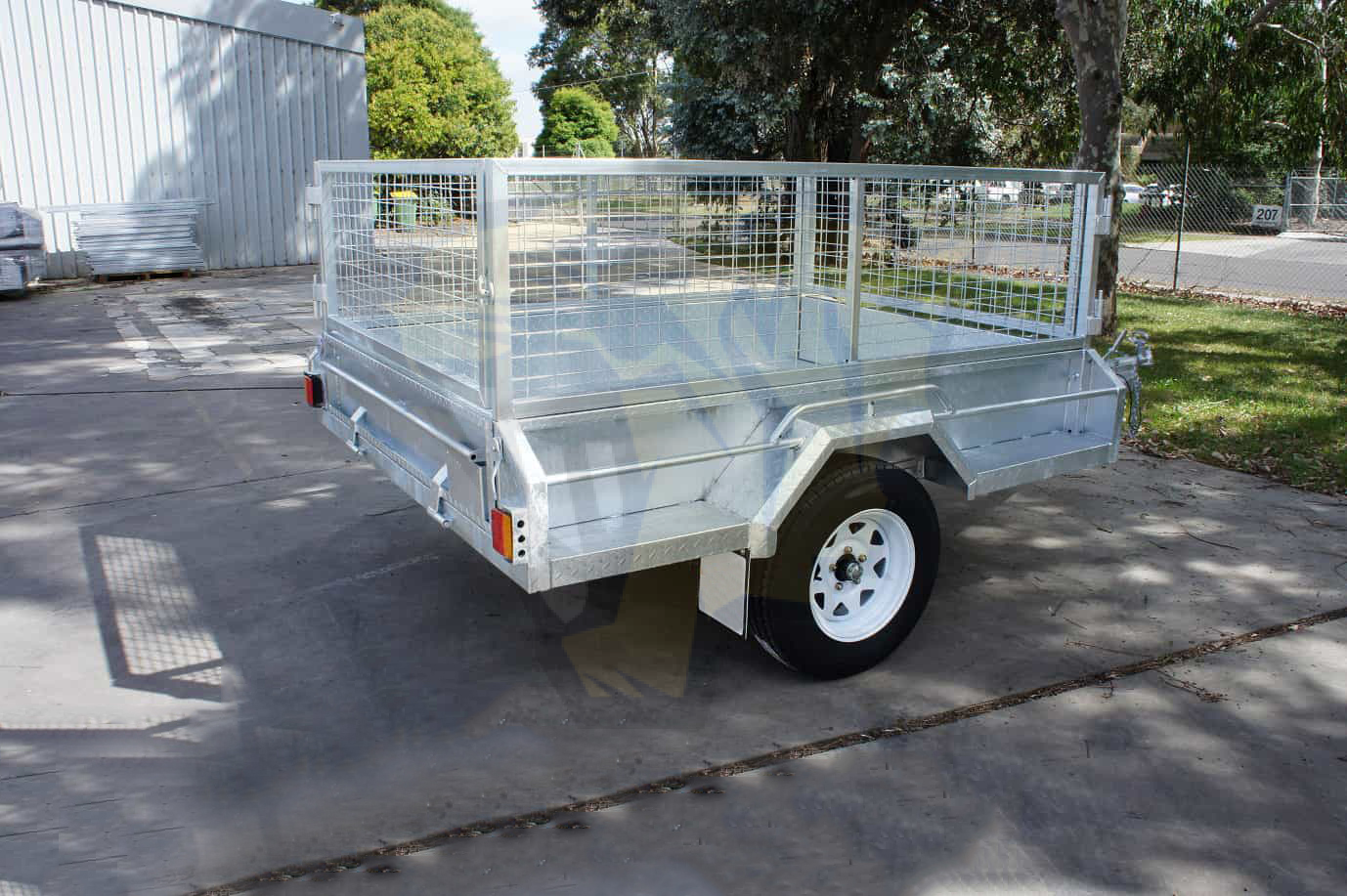

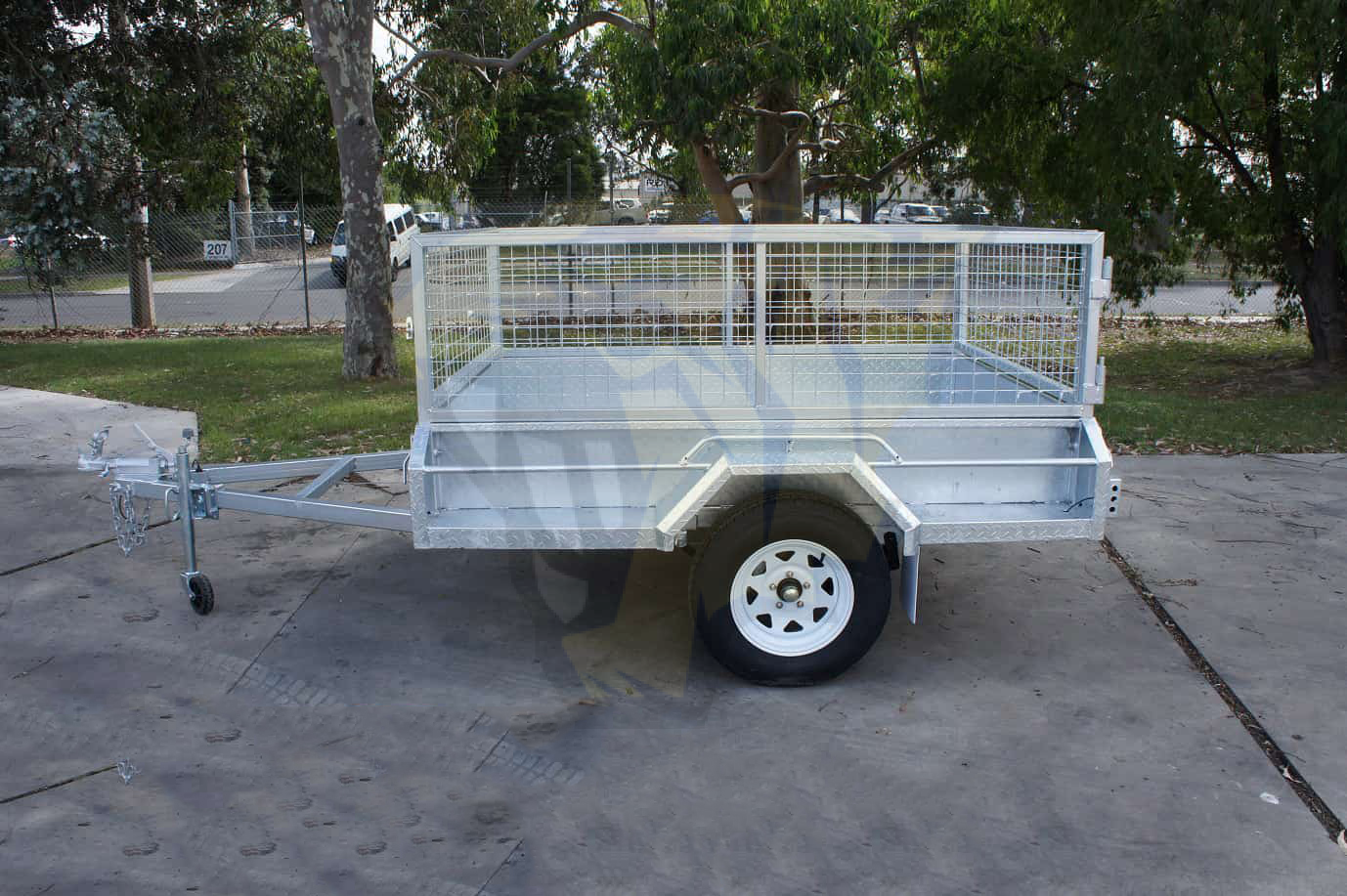

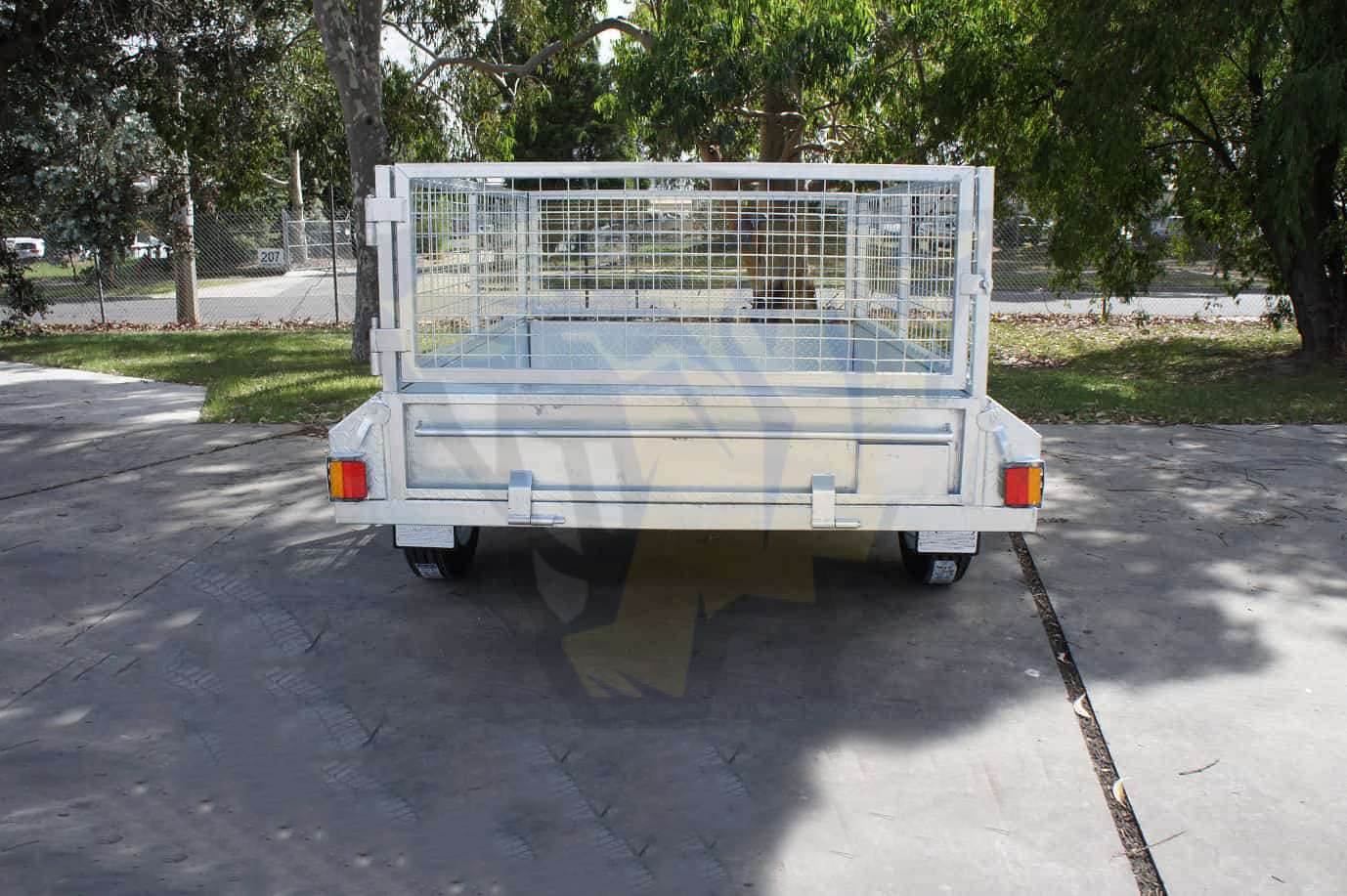

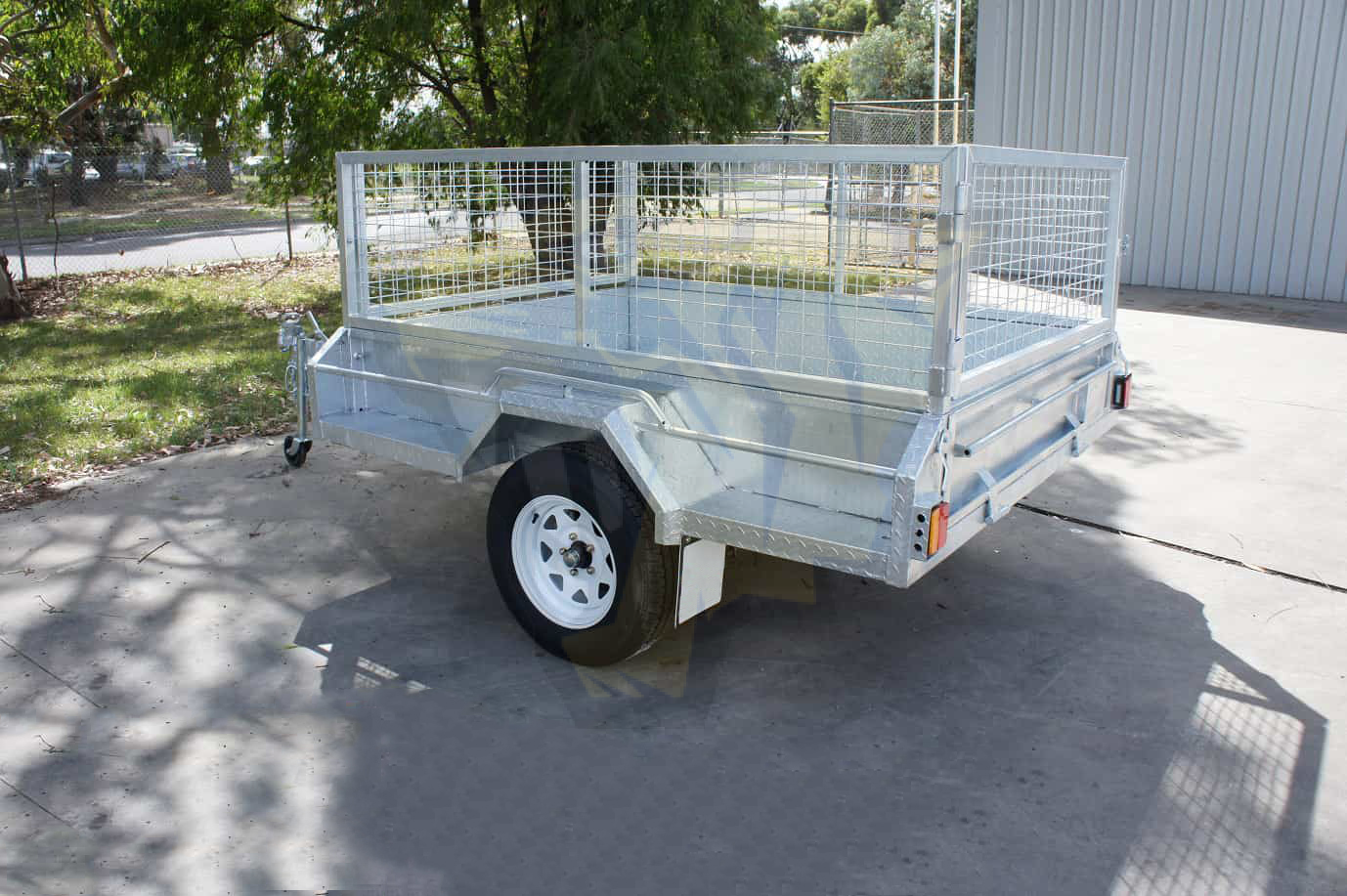

7×5 Heavy Duty Trailer With Brake ATM1400kg (Model No: SP75FWB)
Features
Free Jockey Wheel
Chassis and Draw Bar Are Welded Together, Not Only Bolted.
New Plug in Design Cage (Steady and Easy to Remove)
4 Tie Down Rails are Welded All The Way Around
Front and Rear Tailgates That Can Be Easily Removed
Extended Foot Step for Jerry Can Hold and Toolboxes.
Fully Welded Body
Reinforced Chassis & Hinges
Greasable Eye To Eye Spring Shackle
Specifications
| ATM | 1400kg |
| Internal Size | 2120x1520mm |
| External Size | 3880x2050mm |
| Drawbar | 1500mm Long 100x50x3.0mm Tube |
| Chassis Frame | 70x50x3.0mm Tube |
| Finish | Hot Dipped Galvanized (Rust free) |
| Side | 300mm High (One Piece of Checker Plate Fold Up) |
| Floor | 2.5mm Thick, 2 Piece of Fully Welded Checker Plate |
| Brake |
Mechanical Disk Brakes |
| Cage |
600mm High (Plug In Design) |
| Jockey Wheel | 6" Swing up |
| Tyre | Brand New 14" 185/80R14C Light Truck Tryes |
| Wheel | Sunraysia Style with 5 Studs Ford Hub Pattern |
| Axle | 45x45mm Square Solid |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Spring | 6 Leafs Heavy Duty Spring |
| Safety Chain | 10mm |
| Light | LED Set |
