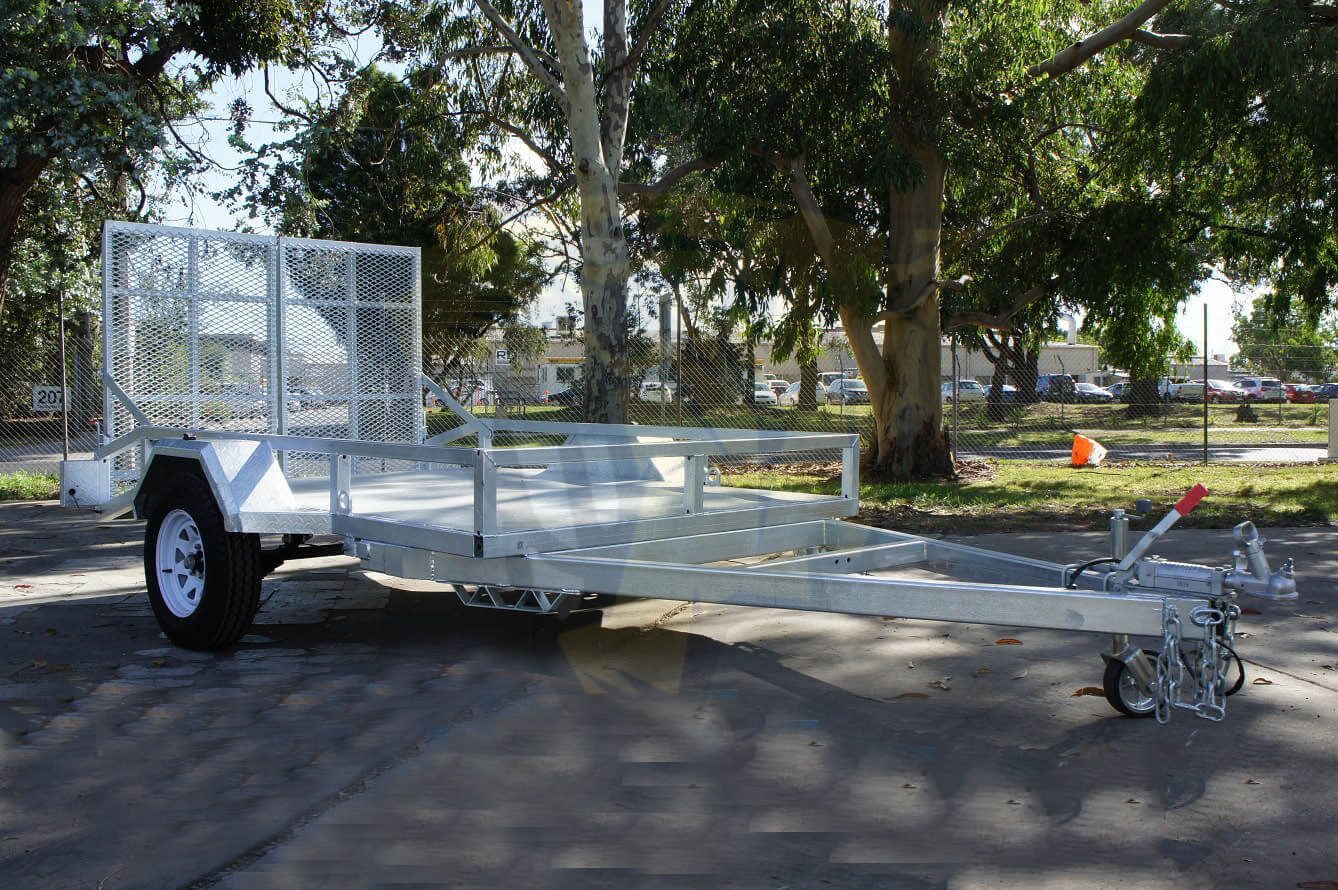

8x5 Motorbike Trailer Mower Trailer ATM1600kg (Model No: SP85USB)
Features
Free 8" Jockey Wheel
Beaver Tail Design
4 Heavy duty Tie Down Rings
Heavy Duty Mesh Ramp
Fully Welded Body
Reinforced Chassis & Hinges
Greasable Eye To Eye Spring Shackle
Suits quad bike, dirt bike, ride on mower & motorcycle
Specifications
| ATM | 1600kg |
| Internal Size | 2420x1520mm |
| External Size | 4260x2280mm |
| Drawbar | 1800mm Long, 100x50x3.0mm Tube |
| Chassis Frame | 70x50x3.0mm Tube |
| Finish | Hot Dipped Galvanized (Rust free) |
| Side | 250mm Steel Frame Side |
| Floor | 2.5mm Thick, 2 Piece of Welded Checker Plate |

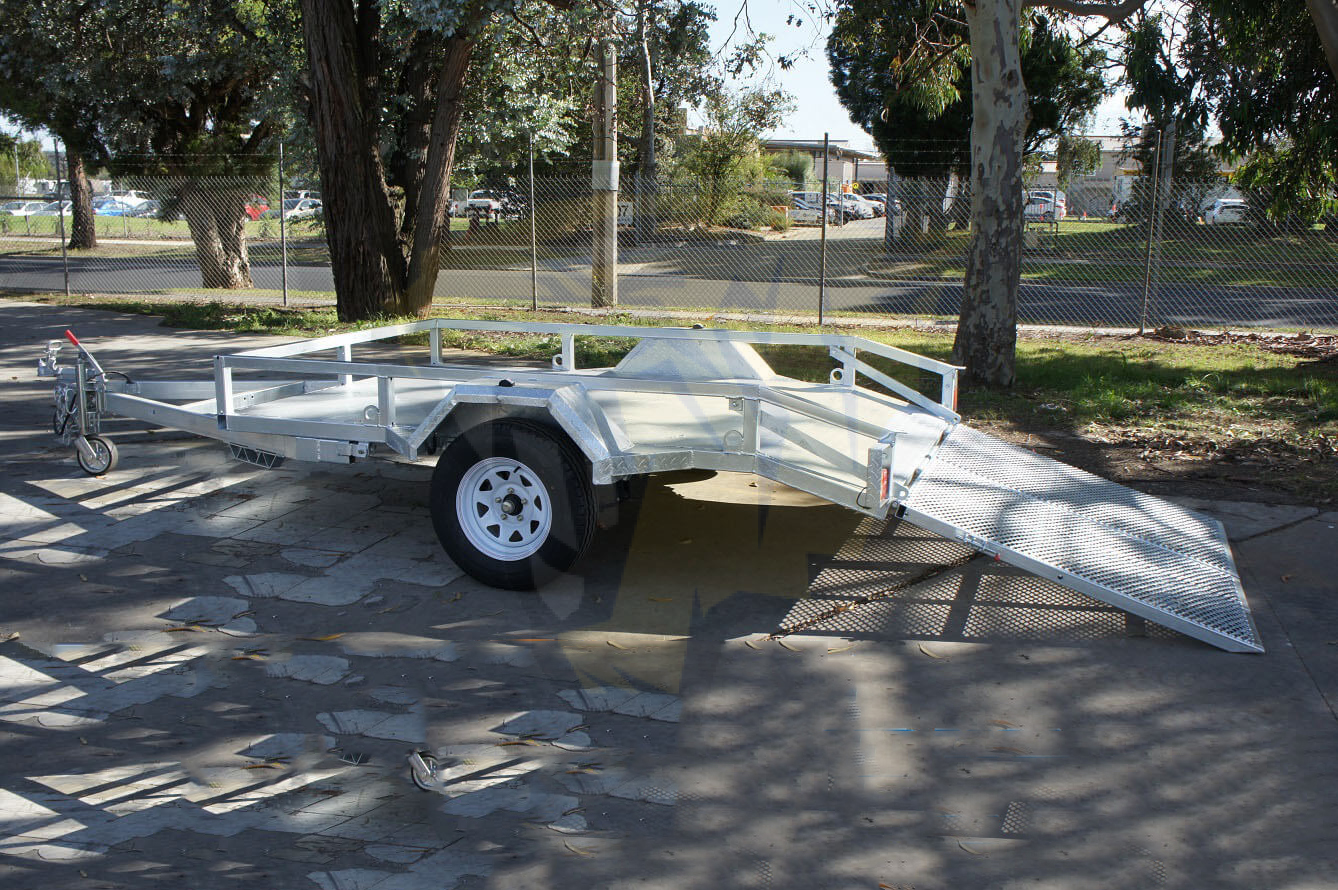

| Ramp | 1300mm Drop Down Mesh Ramp |
| Brake | Mechanical Disk Brakes |
| Jockey Wheel | 8" Swing up |
| Tyre | Brand New 15" 195/R14C Light Truck Tryes |
| Wheel | Sunraysia Style with 6 Studs Land Cruiser Pattern |
| Axle | 50x50mm Square Solid With 2 Tonne Bearing |
| Springs | 7 Leafs Heavy Duty Spring With Greasable Eye to Eye Shackles |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 10mm |
| Light | LED Set |
