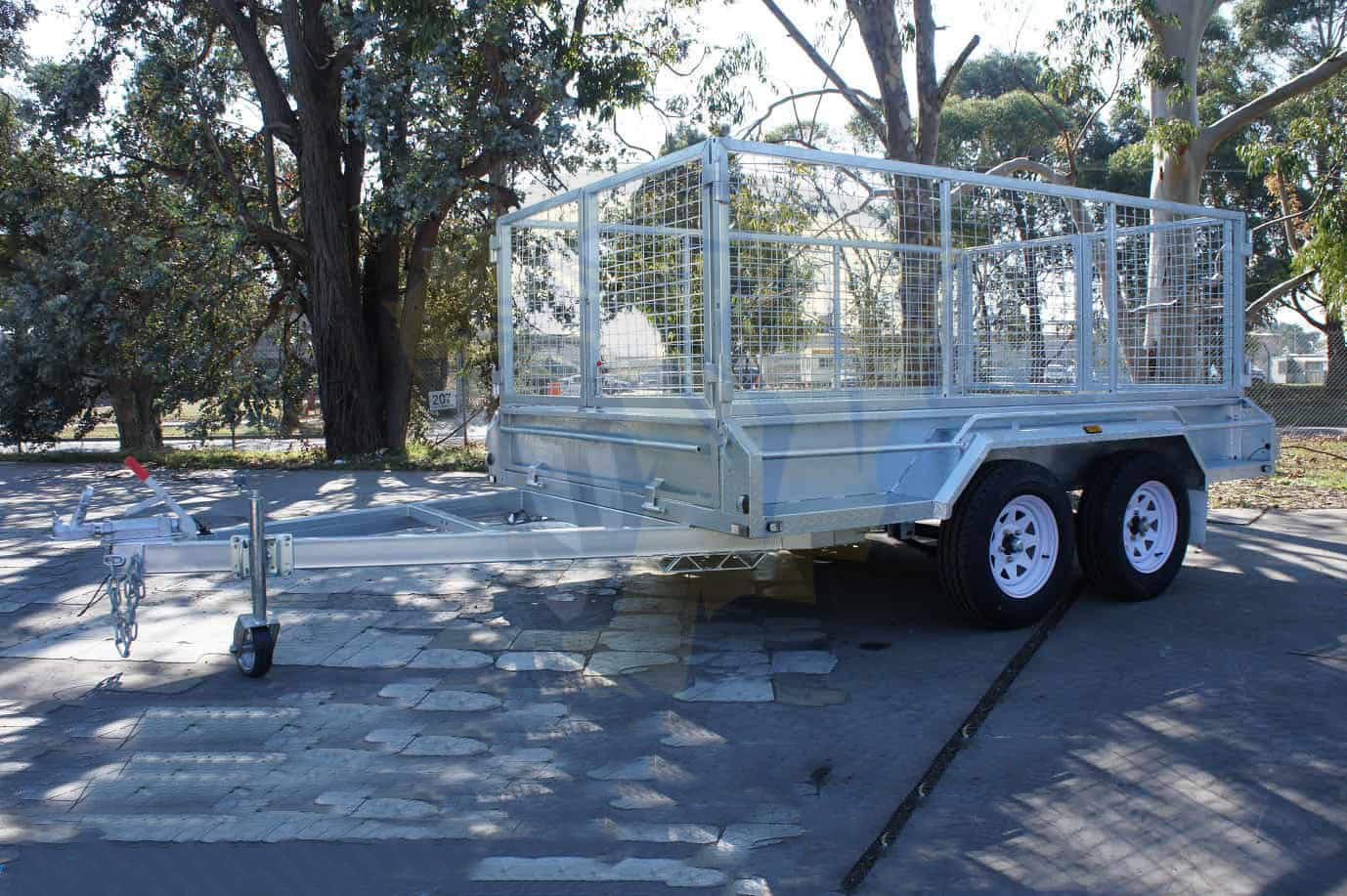

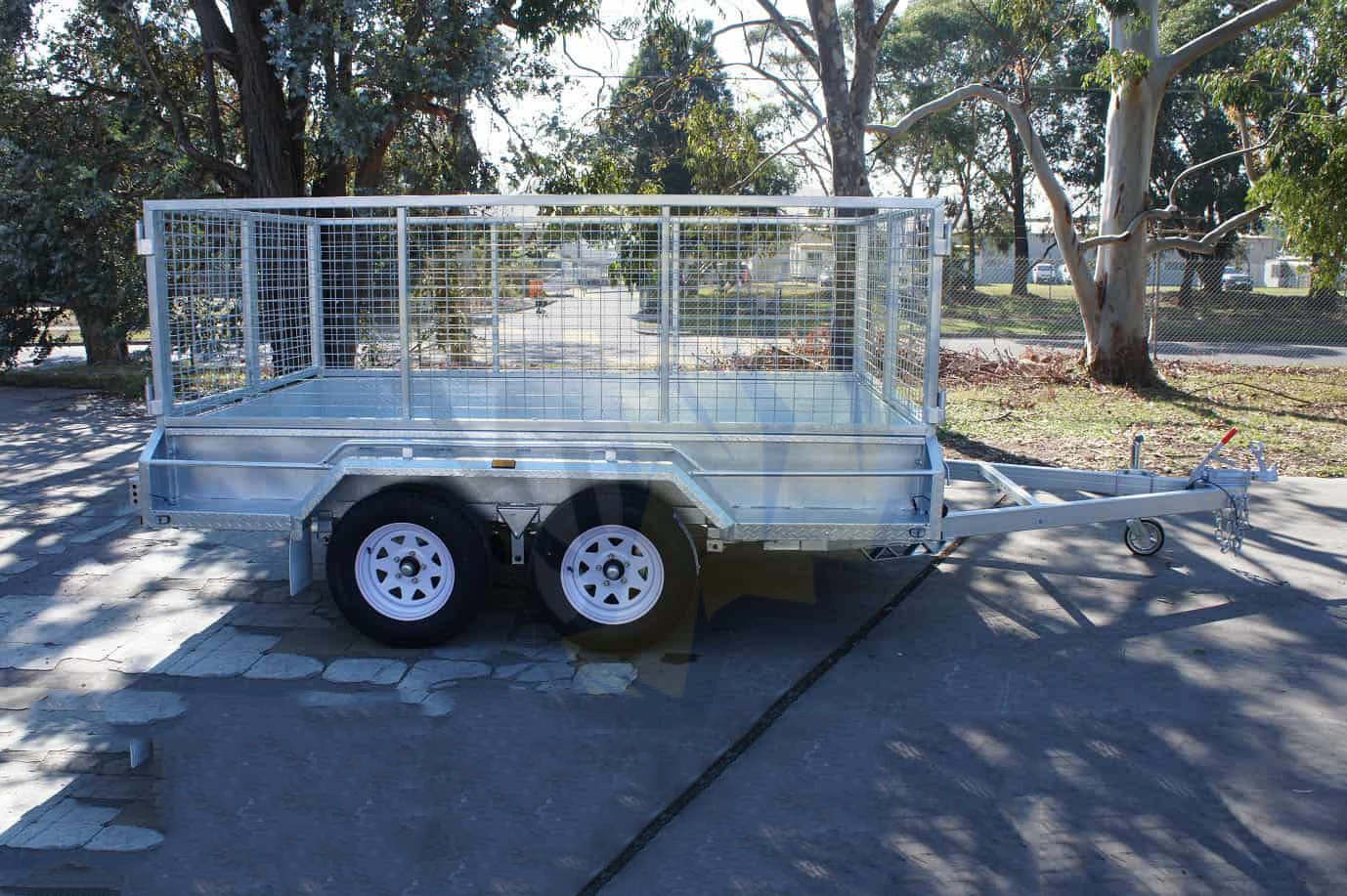

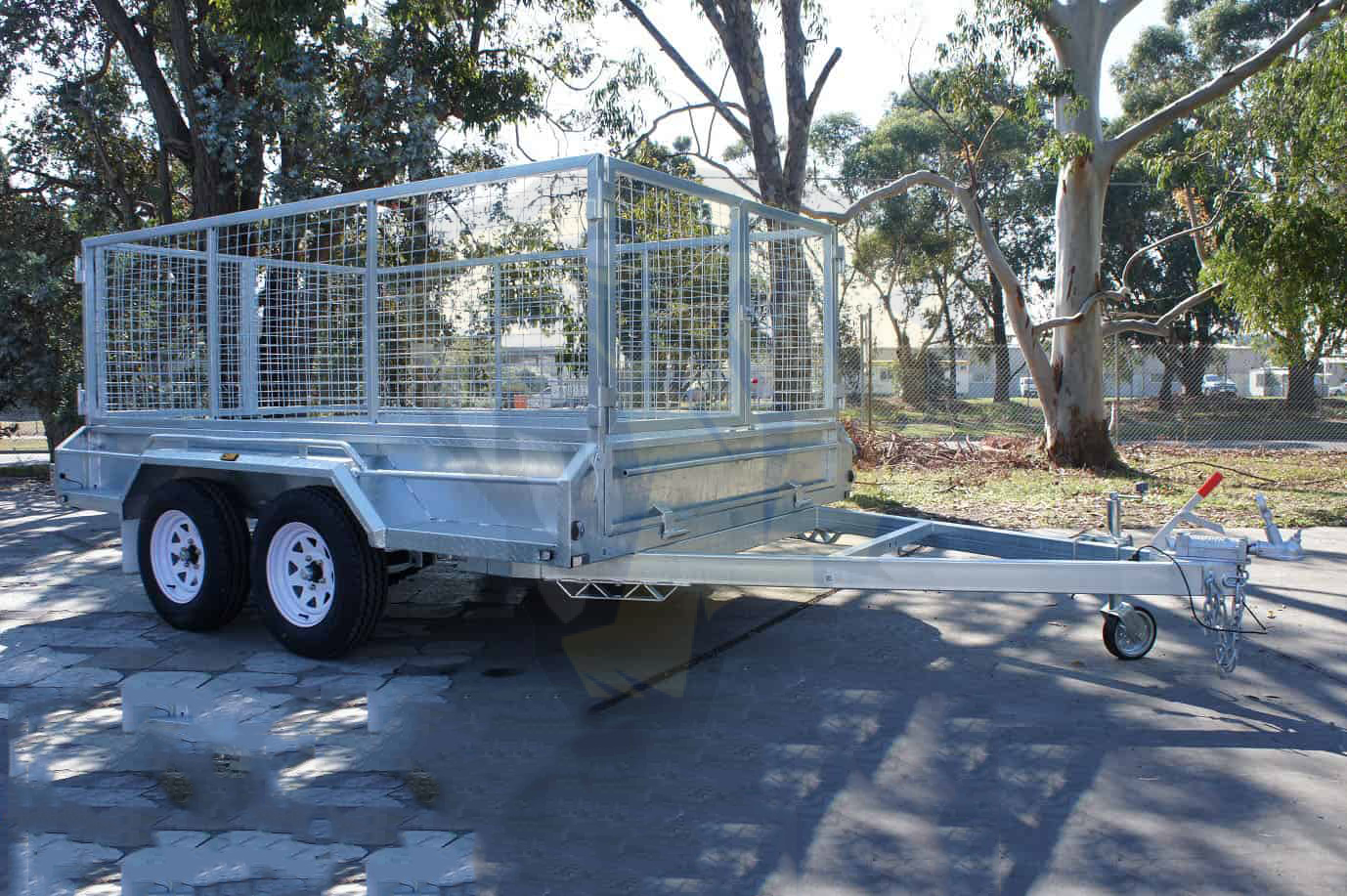

10×6 Heavy Duty Fully Welded Tandem ATM 2000KG (Model No: SP16TWB)
Features
Free 8” Jockey Wheel
Chassis and Draw Bar Are Welded Together, Not Only Bolted.
New Plug in Design Cage (Steady and Easy to Remove)
4 Tie Down Rails are Welded All The Way Around
Front and Rear Tailgates That Can Be Easily Removed
Extended Foot Step for Jerry Can Hold and Toolboxes.
Fully Welded Body
Reinforced Chassis & Hinges Designed for ATM 3000kg
Greasable Rocker Roller Suspension
Specifications
| ATM | 2000kg |
| Internal Size | 3040x1820mm |
| External Size | 5080x2350mm |
| Drawbar | 1800mm 100x50x3.0mm Tube |
| Chassis Frame | 70x50x3.0mm Tube |
| Finish | Hot Dipped Galvanized (Rust free) |
| Side | 300mm High (One Piece of Checker Plate Fold Up) |
| Floor | 2.5mm 2 Piece of Fully Welded Checker Plate |
| Cage | 900mm (Plug In Design) |
| Jockey Wheel | 8" Steel Rim Swing up |
| Tyre | Brand New 14" 185/80R14C Light Truck |
| Wheel | Sunraysia Style with 5 Studs Ford Hub Pattern |
| Axle | 45x45mm Square Solid |
| Suspension | Heavy Duty Greasable Rocker Roller Suspension |
| Spring | Heavey Duty 6 Leaf Eye to Eye Spring |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 10mm |
| Break | Mechanical Disk Brake (Optional Electric Brake Upgrade) |
| Light | LED Set |
