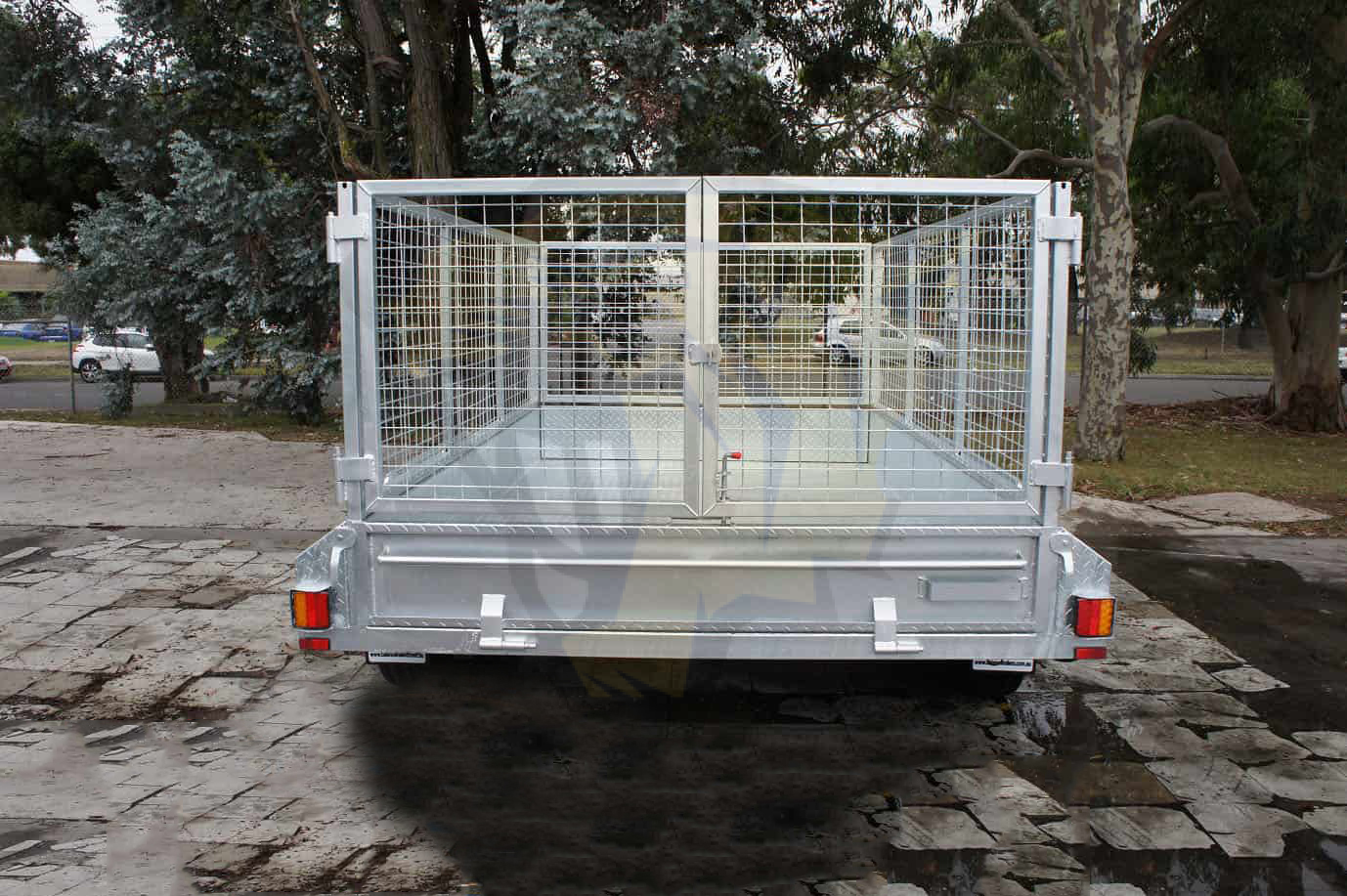

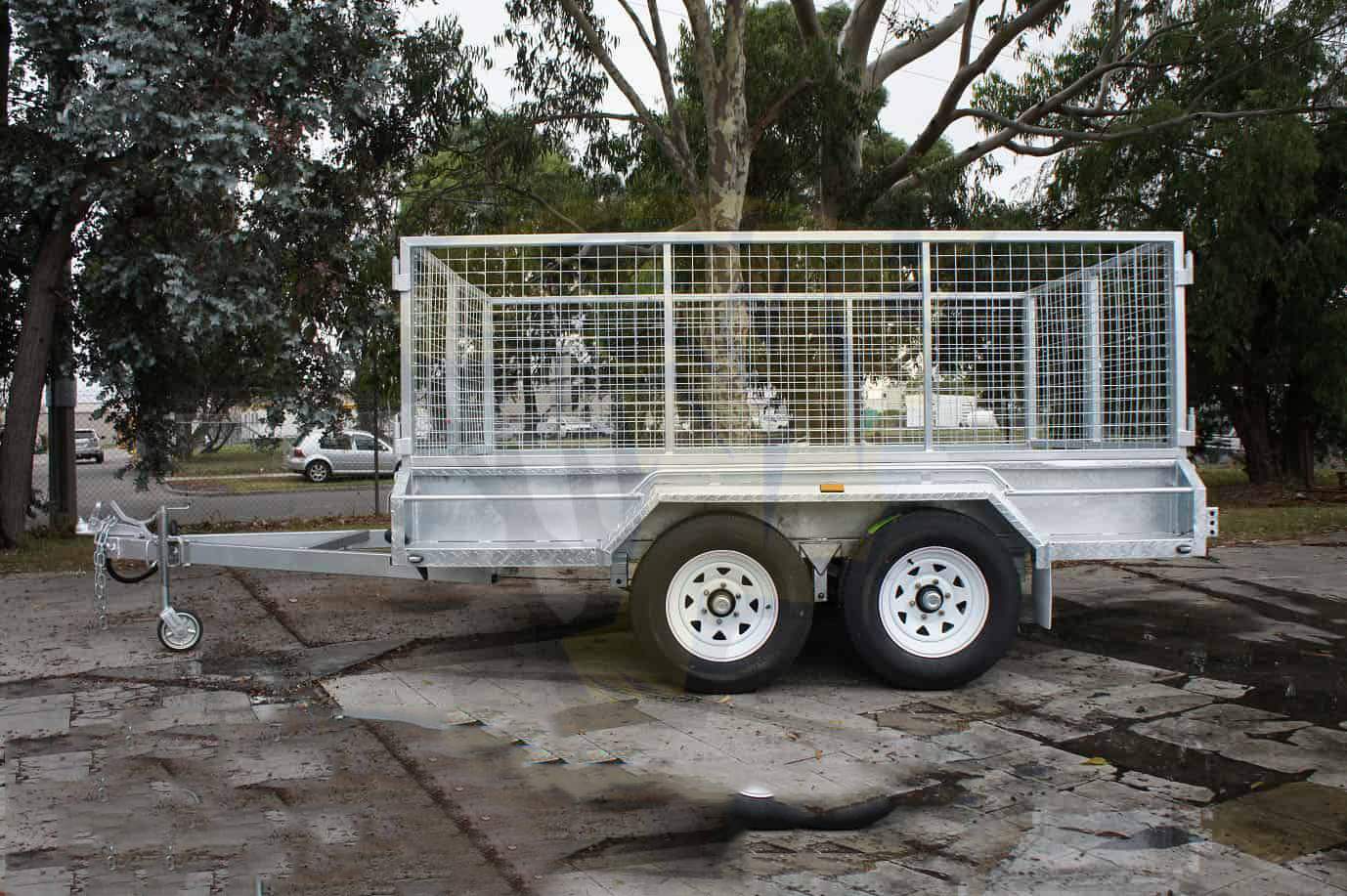

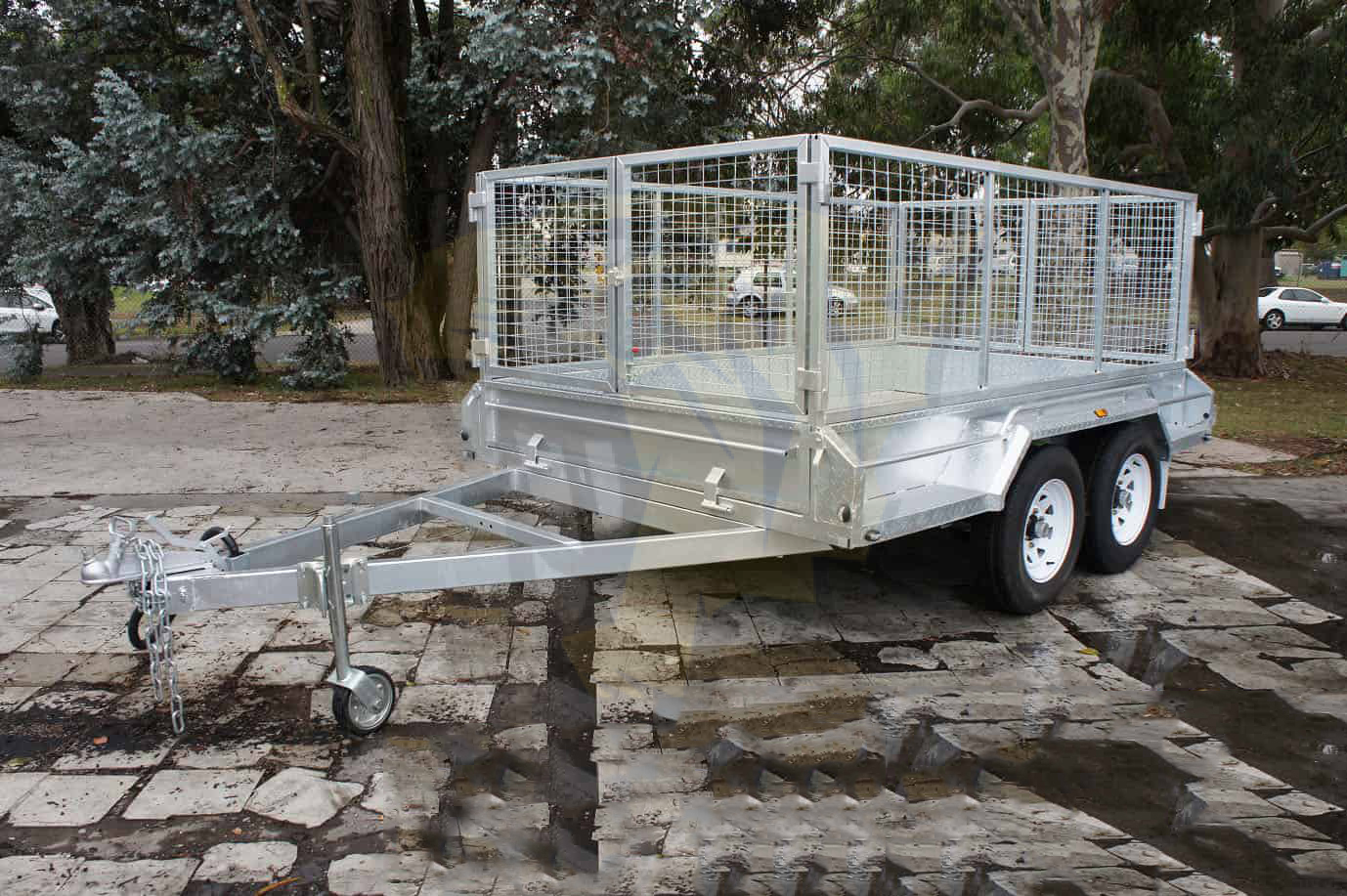

10×6 Heavy Duty Fully Welded Tandem ATM 3200KG (Model No: SP16TWE)
Features
ATM 3200KG
Chassis and Draw Bar Are Welded Together, Not Only Bolted.
Free 8” Jockey Wheel
New Plug in Design Cage (Steady and Easy to Remove)
4 Tie Down Rails are Welded All The Way Around
Front and Rear Tailgates That Can Be Easily Removed
Extended Foot Step for Jerry Can Hold and Toolboxes.
Fully Welded Body
Reinforced Chassis & Hinges
Greasable Rocker Roller Suspension
Electric Brake On 4 Wheels
Specifications
| ATM | 3200kg |
| Internal Size | 3040x1820mm |
| External Size | 5080x2350mm |
| Drawbar | 1800mm 100x50x4.0mm Tube |
| Chassis Frame | 70x50x3.0mm Tube |
| Finish | Hot Dipped Galvanised (Rust free) |
| Side | 300mm High (One Piece of Checker Plate Fold Up) |
| Floor | 2.5mm 2 Piece of Fully Welded Checker Plate |
| Cage | 900mm (Plug In Design) |
| Jockey Wheel | 8" Steel Rim Swing up |
| Tyre | Brand New 15" 195/R15LT Light Truck |
| Wheel | Sunraysia Style with 6 Studs Pattern |
| Axle | 50x50mm Square Solid With Heavy Duty Parallel Bearings |
| Suspension | Heavy Duty Greasable Rocker Roller Suspension |
| Spring | Heavy Duty 7 Leaf Eye to Eye Spring |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 10mm |
| Brake | Electric Brakes on All 4 Wheels with Breakaway Unit |
| Light | LED Set |
