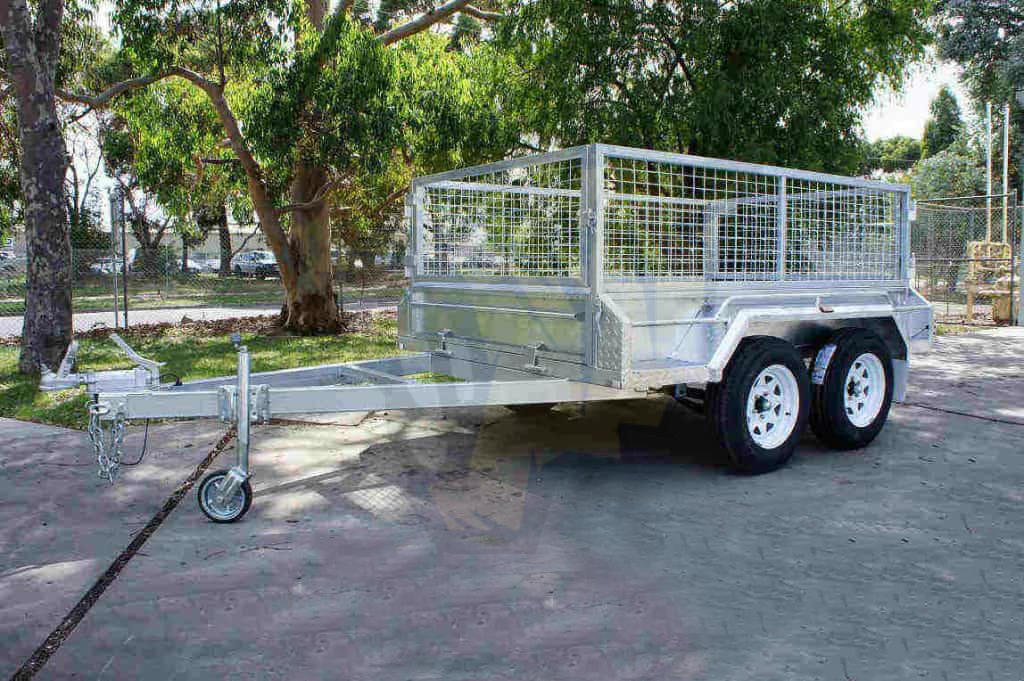

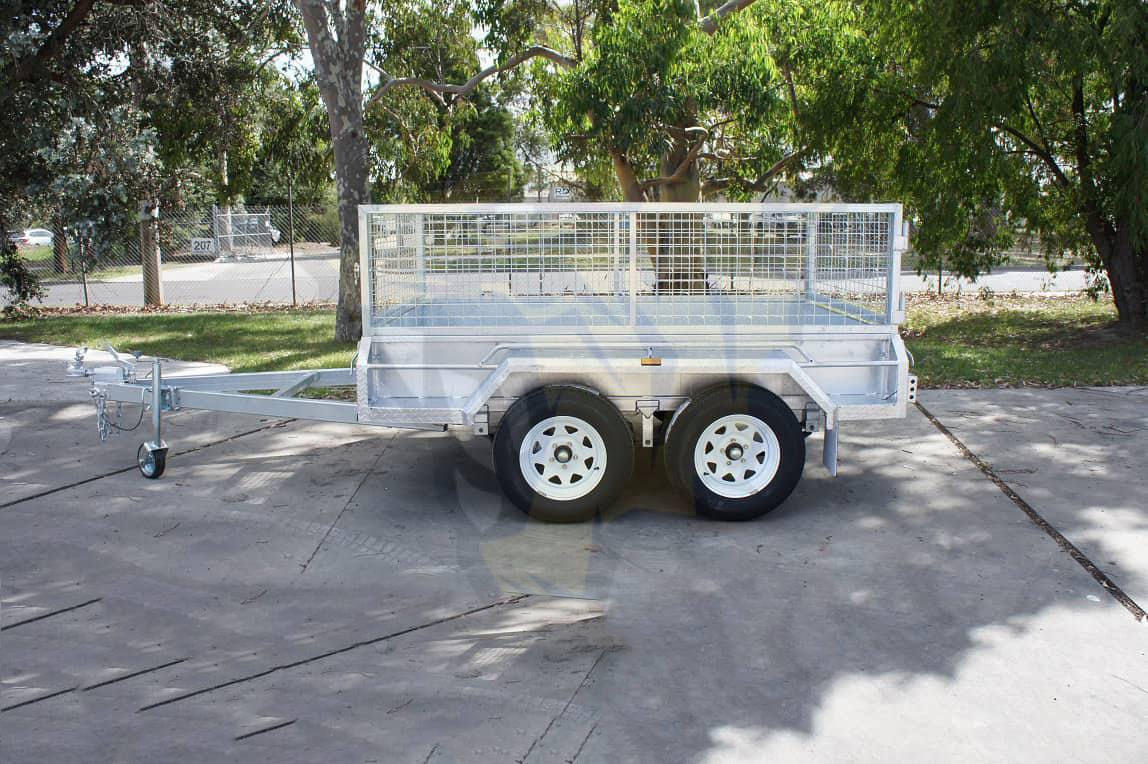

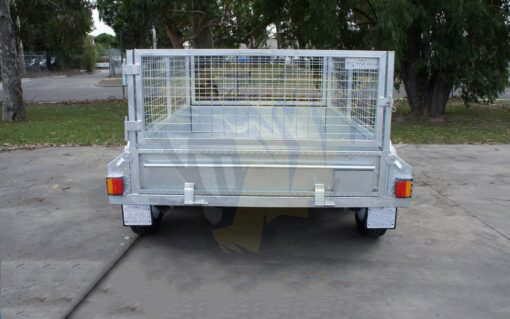

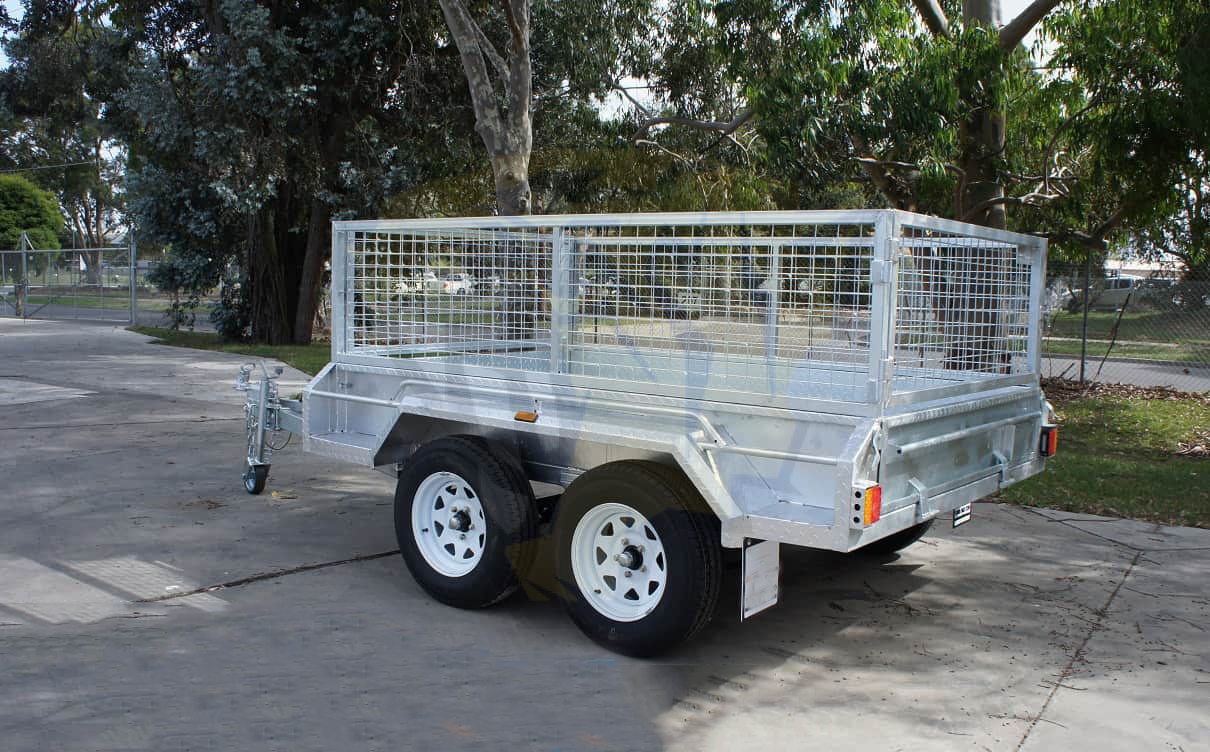

8×5 Heavy Duty Fully Welded Tandem ATM 2000KG (Model No: SP85TWB)
Features
Free 8” Jockey Wheel
Chassis and Draw Bar Are Welded Together, Not Only Bolted.
New Plug in Design Cage (Steady and Easy to Remove)
4 Tie Down Rails are Welded All The Way Around
Front and Rear Tailgates That Can Be Easily Removed
Extended Foot Step for Jerry Can Hold
Fully Welded Body
Reinforced Chassis & Hinges
Greasable Rocker Roller Suspension
Specifications
| ATM | 2000kg |
| Internal Size | 2430x1520mm |
| External Size | 4480x2050mm |
| Drawbar | 1800mm 100x50x3.0mm Tube |
| Chassis Frame | 70x50x3.0mm Tube |
| Finish | Hot Dipped Galvansed (Rust free) |
| Side | 300mm High (One Piece of Checker Plate Fold Up) |
| Floor | 2.5mm 2 Piece of Fully Welded Checker Plate |
| Cage | 600mm (Plug In Design) |
| Jockey Wheel | 8" Steel Rim Swing up |
| Tyre | Brand New 14" 185/80R14C Light Truck |
| Wheel | Sunraysia Style with 5 Studs Ford Hub Pattern |
| Axle | 45x45mm Square Solid |
| Suspension | Heavy Duty Greasable Rocker Roller Suspension |
| Spring | 60X7mm Heavey Duty 6 Leaf Eye to Eye Spring |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 10mm |
| Break | Mechanical Disk Brake (Optional Electric Brake Upgrade) |
| Light | LED Set |
