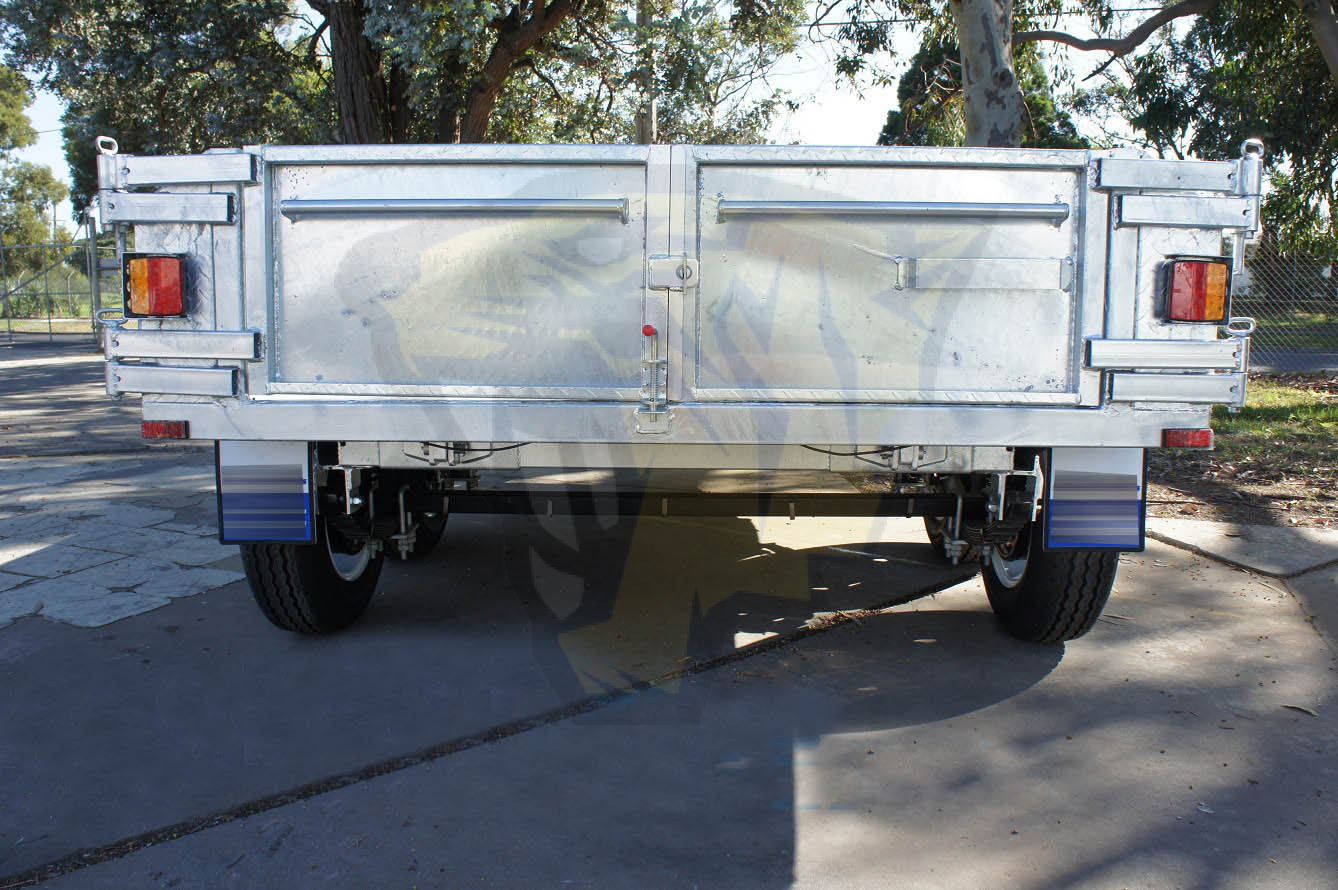

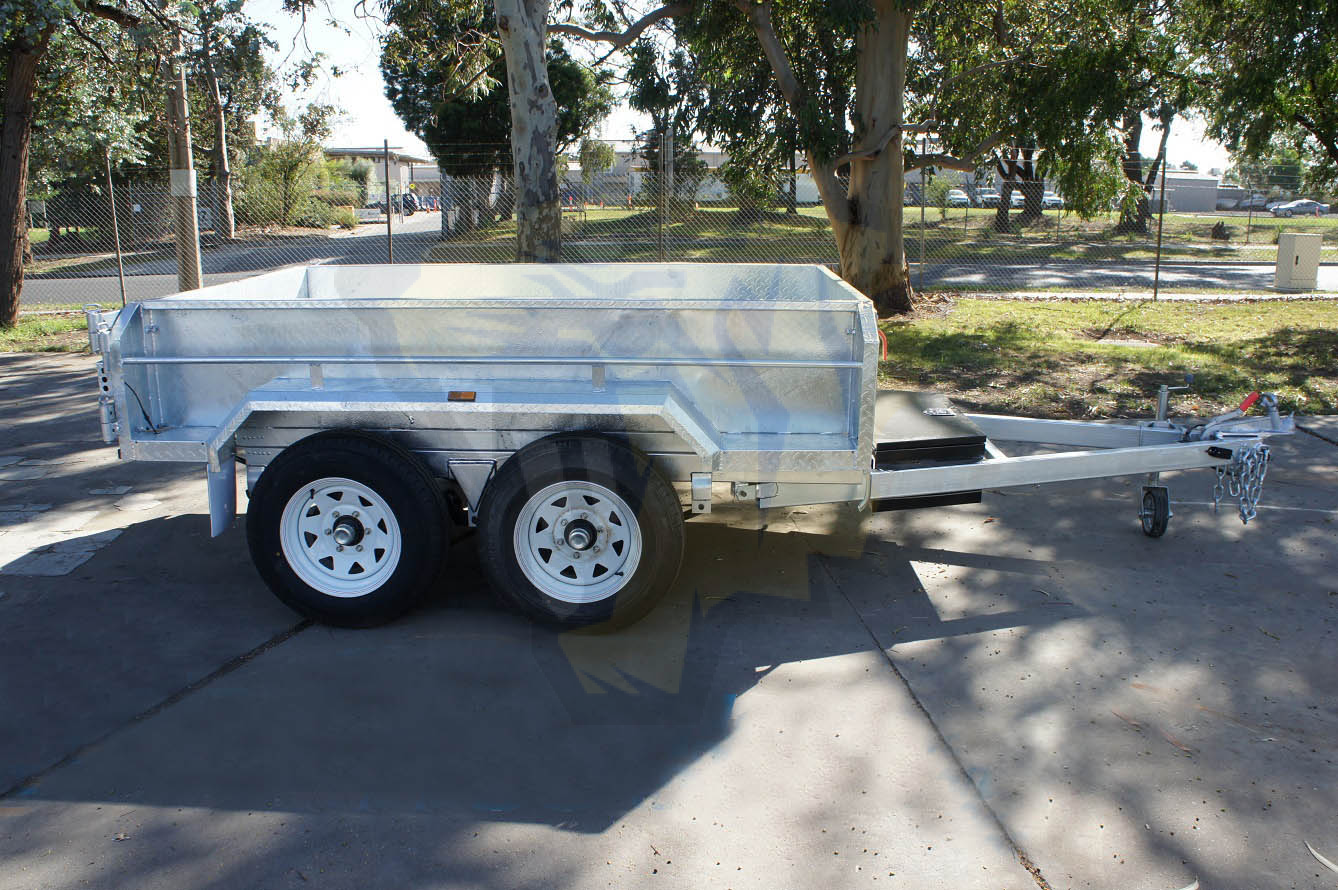

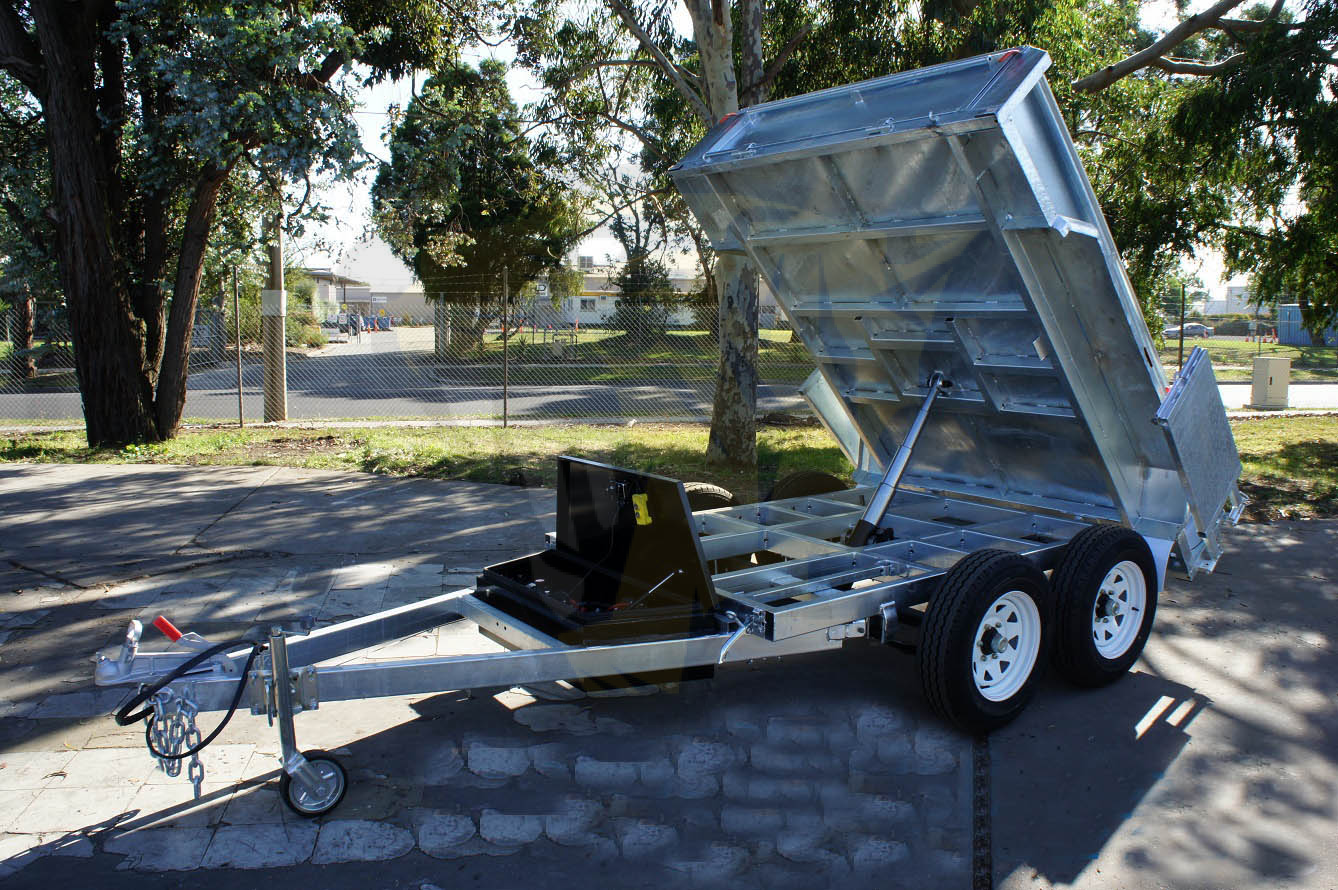

10×5 Galvanised Hydraulic Tandem Tipper Trailer ATM 3500KG (Model: SP15HTE-450)
Features
ATM 3500KG
Barn Door Design
Free 8” Jockey Wheel
New Plug in Cage Design (Steady and Easy to Remove)
4 Stage 3000kg Hydraulic Ram
Remote Controller and Battery are Included in the Front ToolBox
4 Tie Down Rails are Welded All The Way Around
Front and Rear Tailgates That Can Be Easily Removed
Extended Foot Step for Jerry Can Hold
Fully Welded Body
Reinforced Chassis & Hinges
Greasable Rocker Roller Suspension
Specifications
| ATM | 3500kg |
| Internal Size | 3030x1520mm |
| External Size | 5080x2050mm |
| Drawbar | 1800mm 100x50x4.0mm Tube |
| Upper Chassis Frame | 70x50x3.0mm Tube |
| Lower Chassis Frame | 100x50x3.0mm Tube |
| Hydraulic Ram | 5 Stages |
| Finish | Hot Dipped Galvanized (Rust free) |
| Side | 450mm High (One Piece of Checker Plate Fold Up) |
| Floor | 2.5mm 2 Piece of Fully Welded Checker Plate |
| Cage | 600mm/900mm Optional Cage (Plug In Design) |
| Jockey Wheel | 8" Steel Rim Swing up |
| Tyre | Brand New 15" 195/R15LT Light Truck |
| Wheel | Sunraysia Style with 6 Studs Land Cruiser Pattern |
| Axle | 50x50mm Square Solid With 2 Tonne Bearings |
| Suspension | Heavy Duty Greasable Rocker Roller Suspension |
| Spring | Heavy Duty 8 Leaf Eye to Eye Spring |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 13mm |
| Brake | Electric Brakes on All 4 Wheels with Breakaway Unit |
| Light | LED Set |
