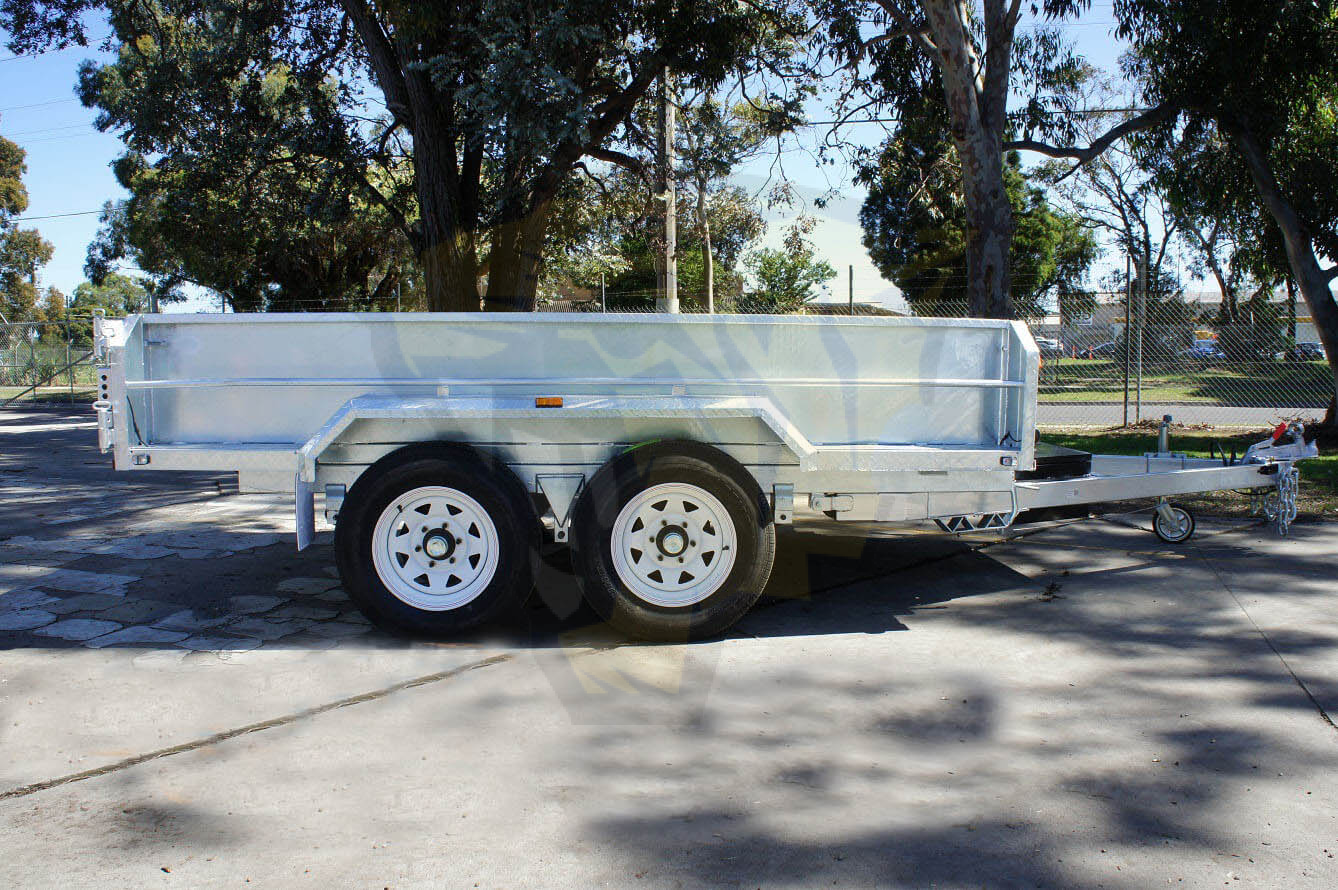

10x6 Galvanised Hydraulic Tandem Tipper Trailer ATM 3500KG (Model: SP16HTE-450)
Features
ATM 3500KG
Chassis and Draw Bar Are Welded Together, Not Only Bolted.
450mm High Side
Barn Door Design
Free 8” Jockey Wheel
New Plug in Cage Design (Steady and Easy to Remove)
4 Stage 3000kg Hydraulic Ram
Remote Controller and Battery are Included in the Front ToolBox
4 Tie Down Rails are Welded All The Way Around
Front and Rear Tailgates That Can Be Easily Removed
Extended Foot Step for Jerry Can Hold
Fully Welded Body
Reinforced Chassis & Hinges
Greasable Rocker Roller Suspension
Specifications
| ATM | 3500kg |
| Internal Size | 3040x1820mm |
| External Size | 5080x2350mm |
| Drawbar | 1800mm 100x50x5.0mm Tube |
| Upper Chassis Frame | 70x50x3.0mm Tube |
| Lower Chassis Frame | 100x50x3.0mm Tube |
| Hydraulic Ram | 5 Stages |
| Finish | Hot Dipped Galvanized (Rust free) |
| Side | 450mm High (One Piece of Checker Plate Fold Up) |
| Floor | 2.5mm 2 Piece of Fully Welded Checker Plate |
| Cage | 600mm/900mm Optional Cage (Plug In Design) |
| Jockey Wheel | 8" Steel Rim Swing up |
| Tyre | Brand New 15" 195/R15LT Light Truck |
| Wheel | Sunraysia Style with 6 Studs Land Cruiser Pattern |
| Axle | 50x50mm Square Solid With 2 Tonne Bearing |
| Suspension | Heavy Duty Greasable Rocker Roller Suspension |
| Spring | Heavy Duty 8 Leaf Eye to Eye Spring |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 13mm |
| Brake | Electric Brakes on All 4 Wheels with Breakaway Unit |
| Light | LED Set |
