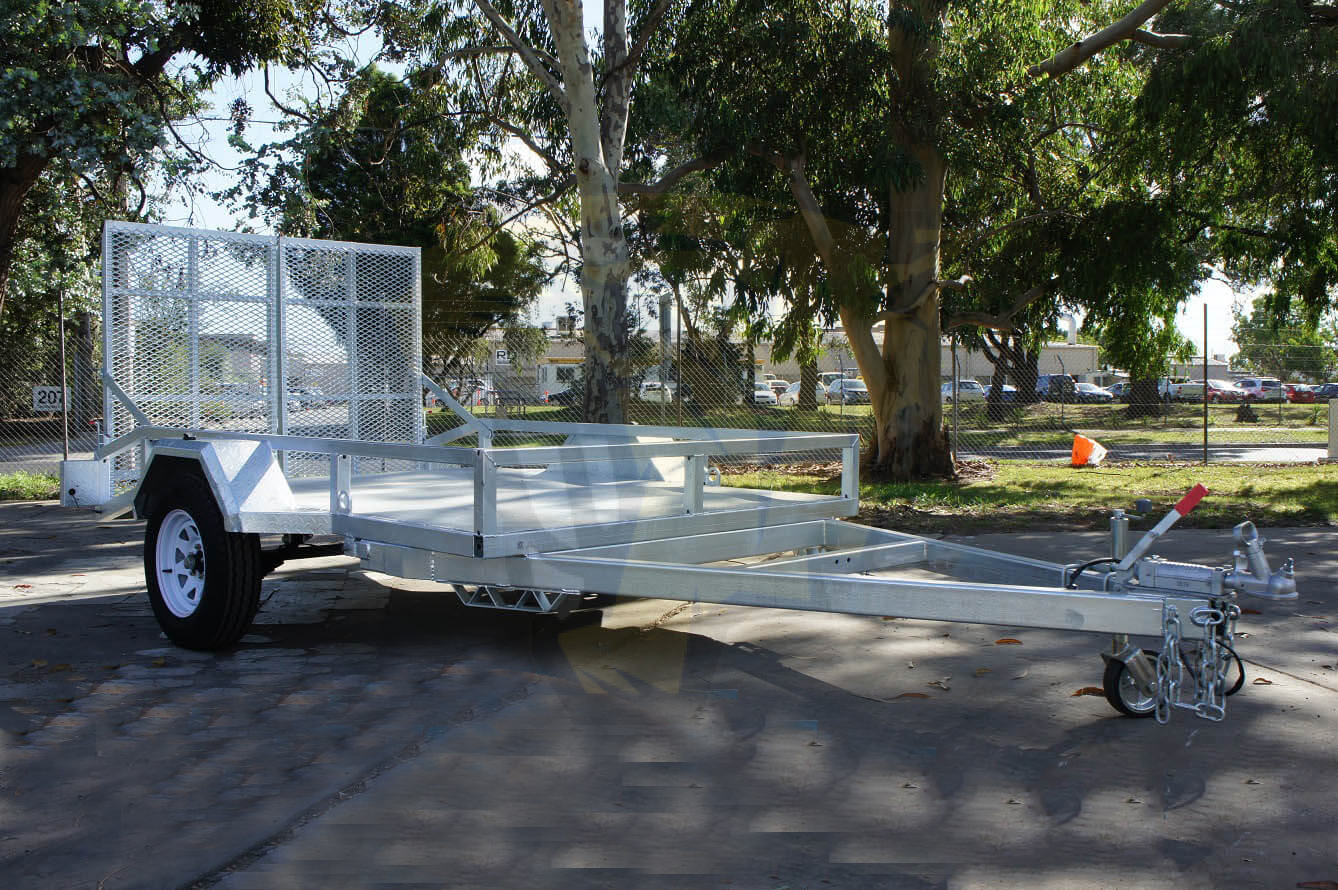

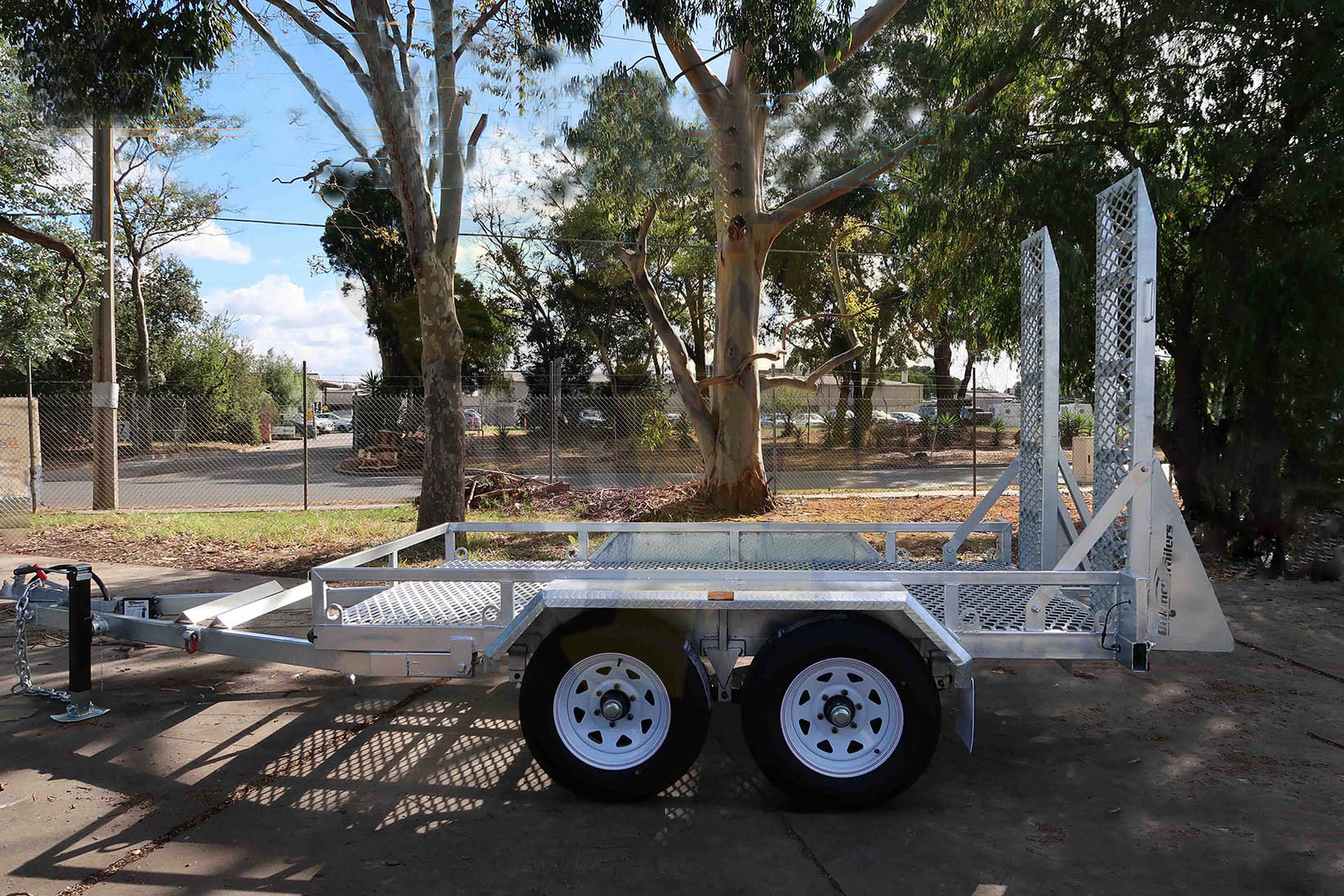

10×5 Heavy Duty Fully Welded Tandem Plant Trailer With Drop Down Ramp ATM 3500KG (Model No: SP15PTE)
Features
ATM 3500KG
Free 8” Jockey Wheel
4mm Chassis and 5mm Drawbar
8 Tie Down Anchors are Welded All The Way Around
Beaver Tail Design Allow To have Better Angle

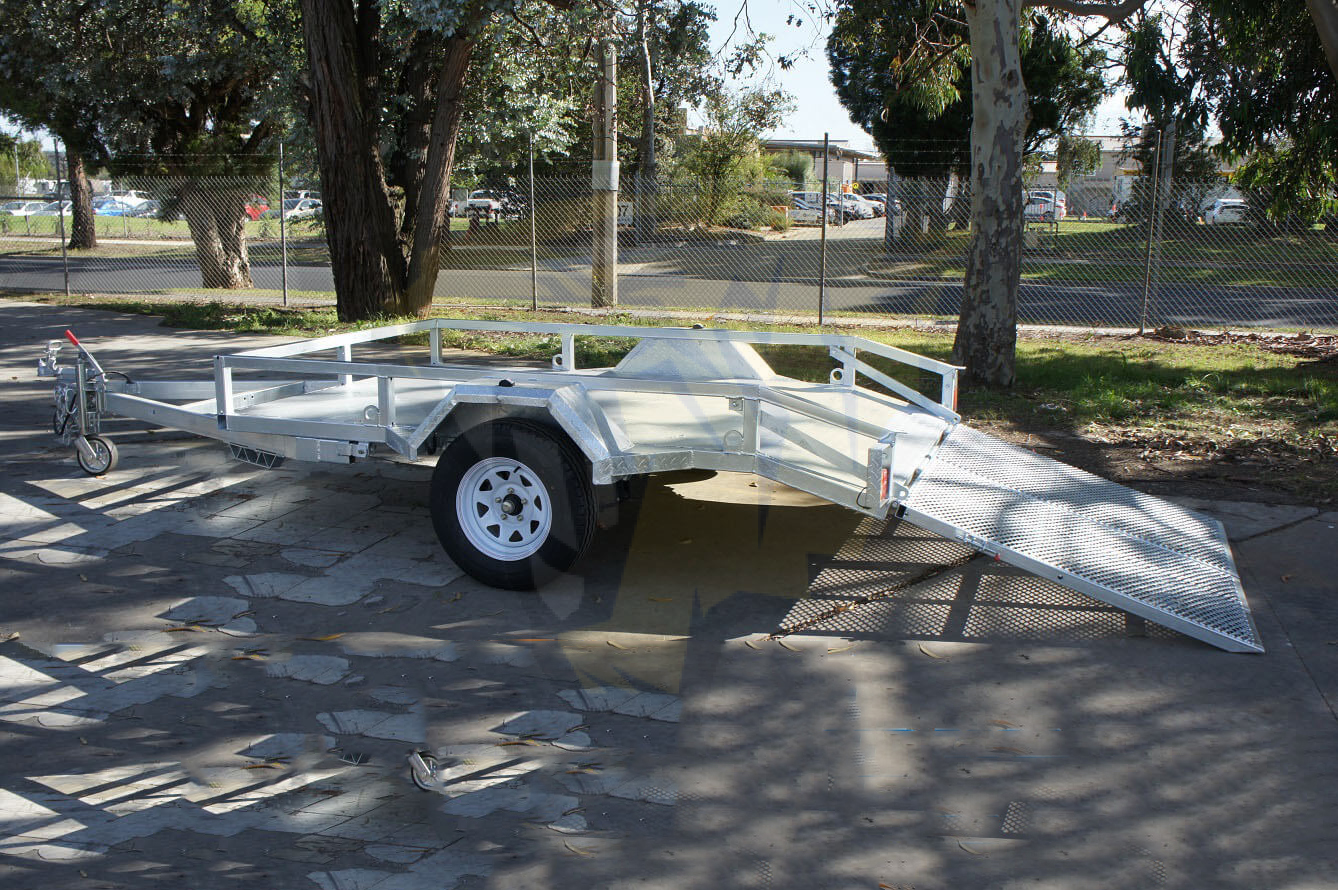

Heavy Duty Drop Down Ramps.
Fully Welded and Hot Dip Galvanised Body
Reinforced Chassis & Hinges
Greasable Rocker Roller Suspension
Electric Brake On 4 Wheels
Specifications
| ATM | 3500kg |
| Internal Size | 3020x1550mm |
| External Size | 5380x2100mm |
| Drawbar | 1800mm 100x50x5.0mm Tube |
| Chassis Frame | 100x50x4.0mm Tube |
| Finish | Hot Dipped Galvanised (Rust free) |
| Side | 220mm High Steel Frame |
| Floor | Heavy Duty Mesh Floor |
| Jockey Wheel | 8" Steel Rim Swing up |
| Tyre | Brand New 15" 195/R15LT Light Truck |
| Wheel | Sunraysia Style with 6 Studs Land Cruiser Pattern |
| Axle | 50x50mm Square Solid With Heavy Duty 2 Tonne Bearings |
| Suspension | Heavy Duty Greasable Rocker Roller Suspension |
| Spring | Heavy Duty 8 Leaf Eye to Eye Spring |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 13mm |
| Brake | Electric Brakes on All 4 Wheels with Breakaway Unit |
| Light | LED Set |
