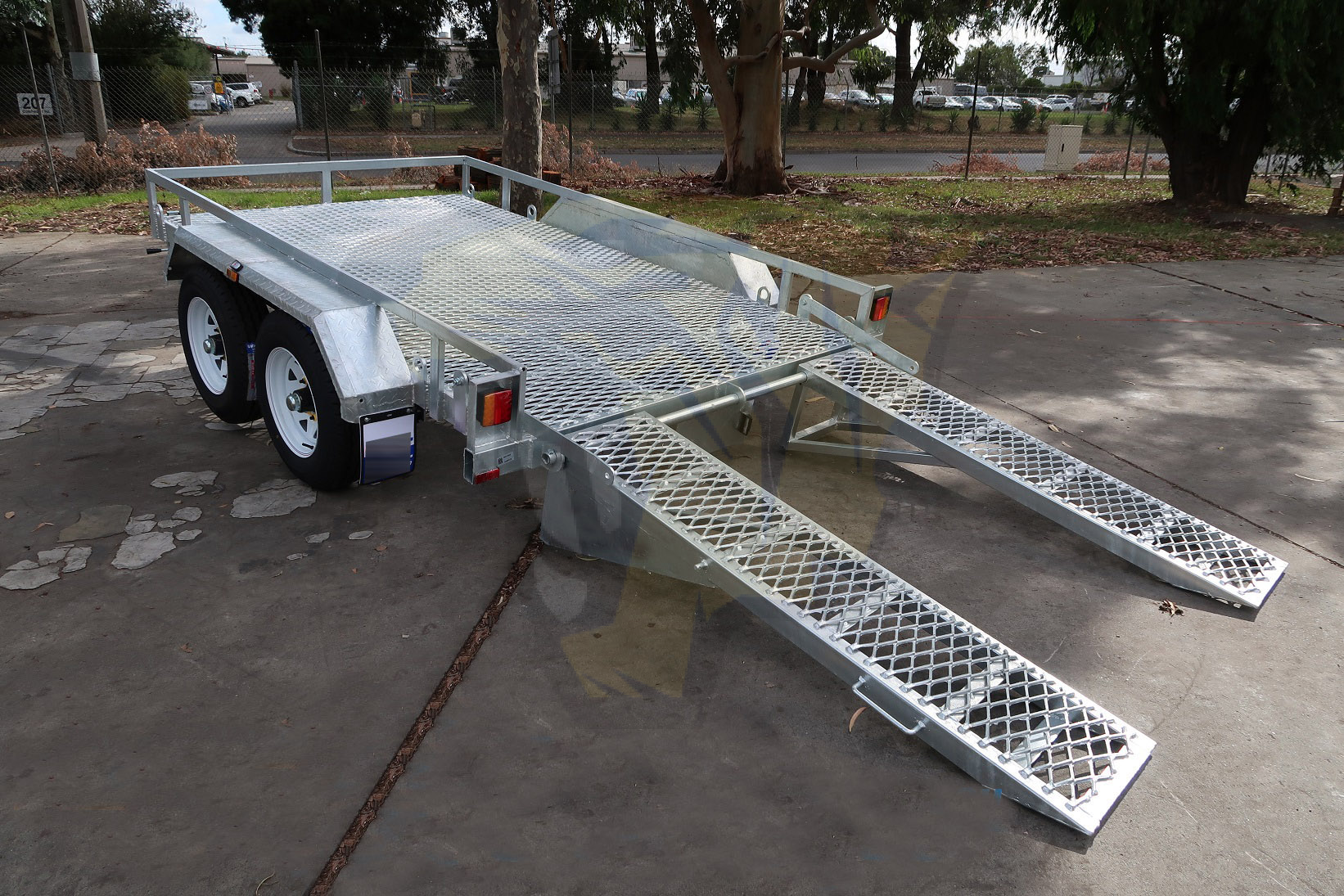

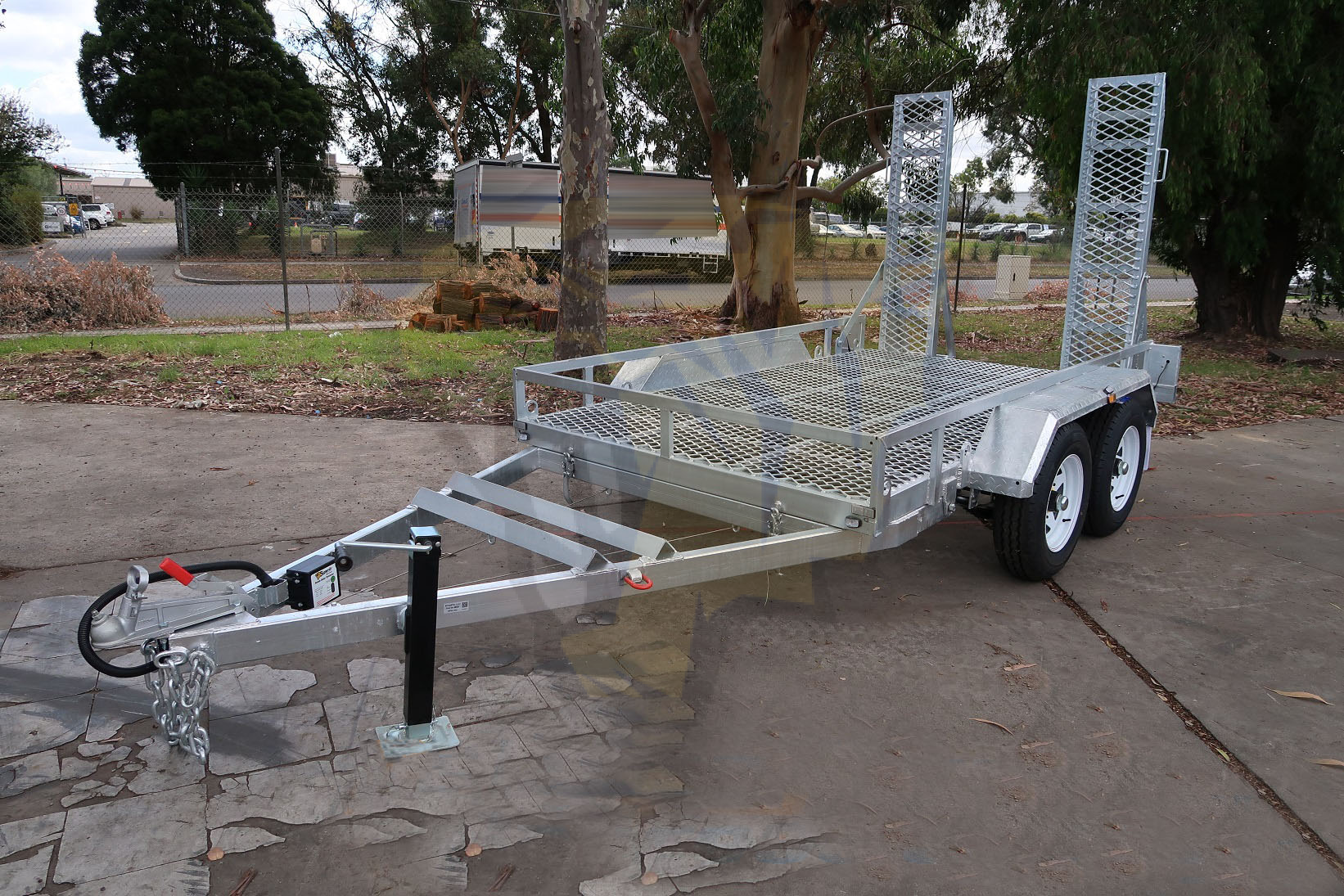

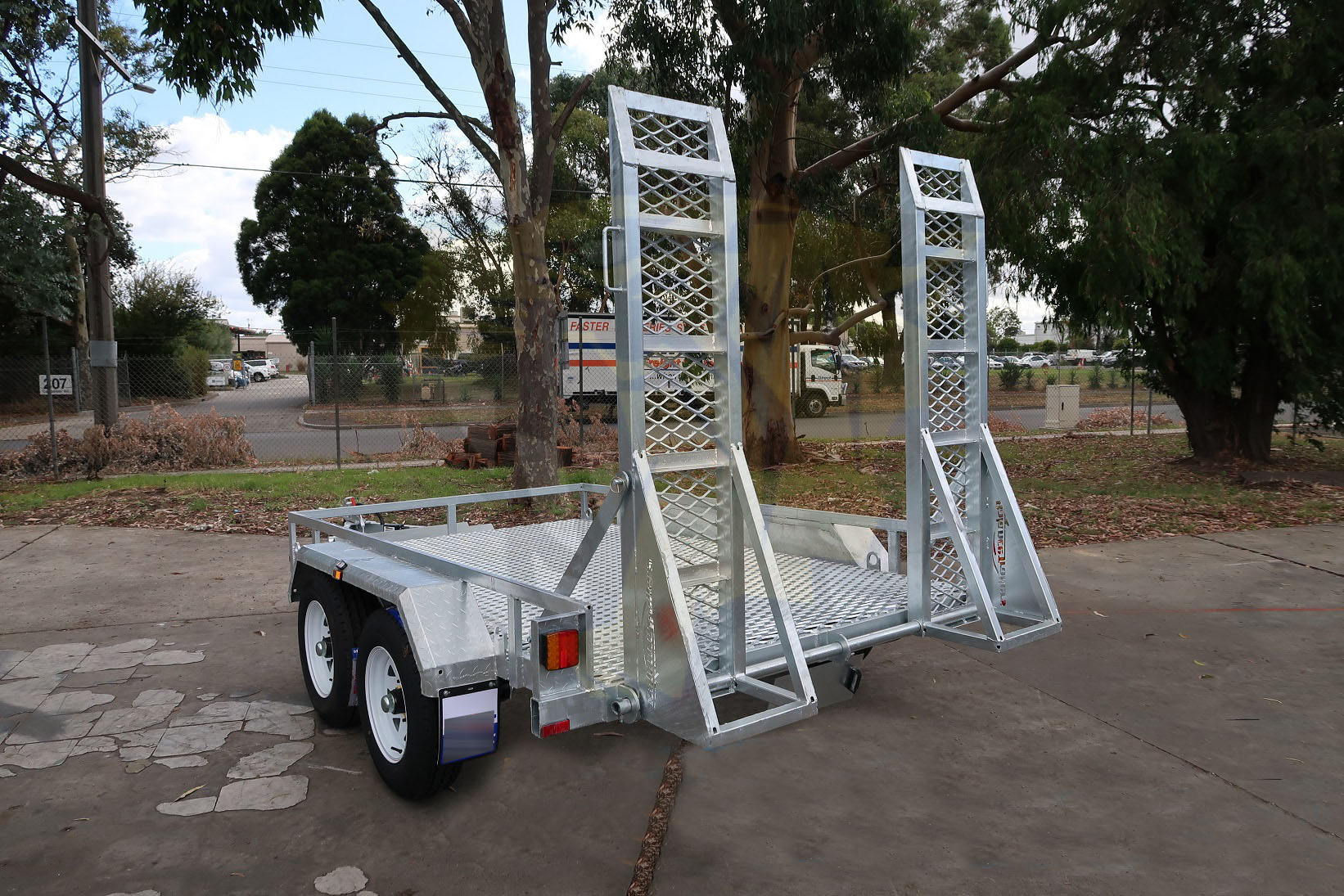

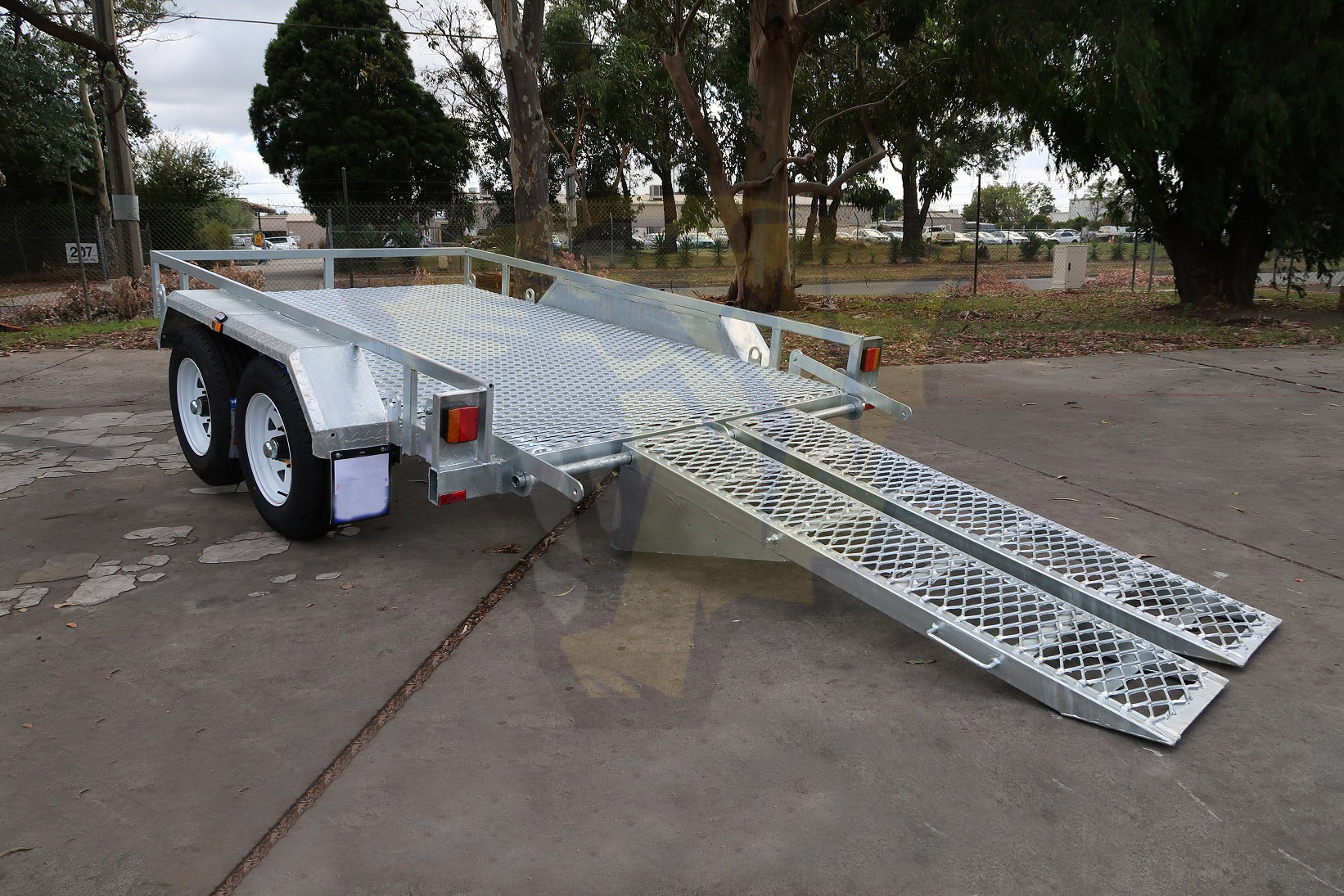

8x5 Heavy Duty Fully Welded Tandem Plant Trailer With Drop Down Ramp ATM 3200KG (Model No: SP85PTE)
Features
ATM 3200KG
Free 8” Jockey Wheel
3mm Chassis and 4mm Drawbar
8 Tie Down Anchors are Welded All The Way Around
Tipping Design Allow To have Better Angle
Heavy Duty Drop Down Ramps.
Fully Welded and Hot Dip Galvanised Body
Reinforced Chassis & Hinges
Greasable Rocker Roller Suspension
Electric Brake On 4 Wheels
Specifications
| ATM | 3200kg |
| Internal Size | 2420x1850mm |
| External Size | 4280x2100mm |
| Drawbar | 1800mm 100x50x4.0mm Tube |
| Chassis Frame | 100x50x3.0mm Tube |
| Finish | Hot Dipped Galvanised (Rust free) |
| Side | 220mm High Steel Frame |
| Floor | Heavy Duty Mash Floor |
| Jockey Wheel | 8" Steel Rim Swing up |
| Tyre | Brand New 15" 195/R15LT Light Truck |
| Wheel | Sunraysia Style with 6 Studs Ford Hub Pattern |
| Axle | 50x50mm Square Solid With Heavy Duty Parallel Bearings |
| Suspension | Heavy Duty Greasable Rocker Roller Suspension |
| Spring | Heavy Duty 7 Leaf Eye to Eye Spring |
| Coupling | 50mm ADR Approved Australia Standard with Grease Nipples |
| Trailer plug | Round or Flat 7 Pin Plug |
| Safety Chain | 13mm |
| Brake | Electric Brakes on All 4 Wheels with Breakaway Unit |
| Light | LED Set |
